Geomembrane Product Features
- Raw Material: High Density Polyethylene, ≥0.940 g/cm3.
- Thickness: 0.75-3mm.
- Width: 6-8m, can be customized.
- Standard: GB/T 17643-2025, GRI-GM13, ASTM, ISO...
- Delivery Time: Have stock.

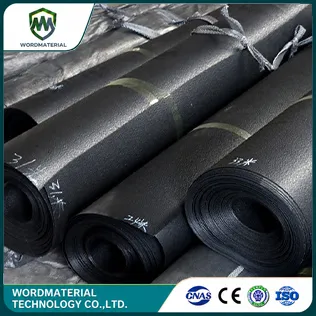

- Packaging: 50-100 m/roll, can be customized.
- Free Samples: Available.
- MOQ: Trial or bulk orders are acceptable.

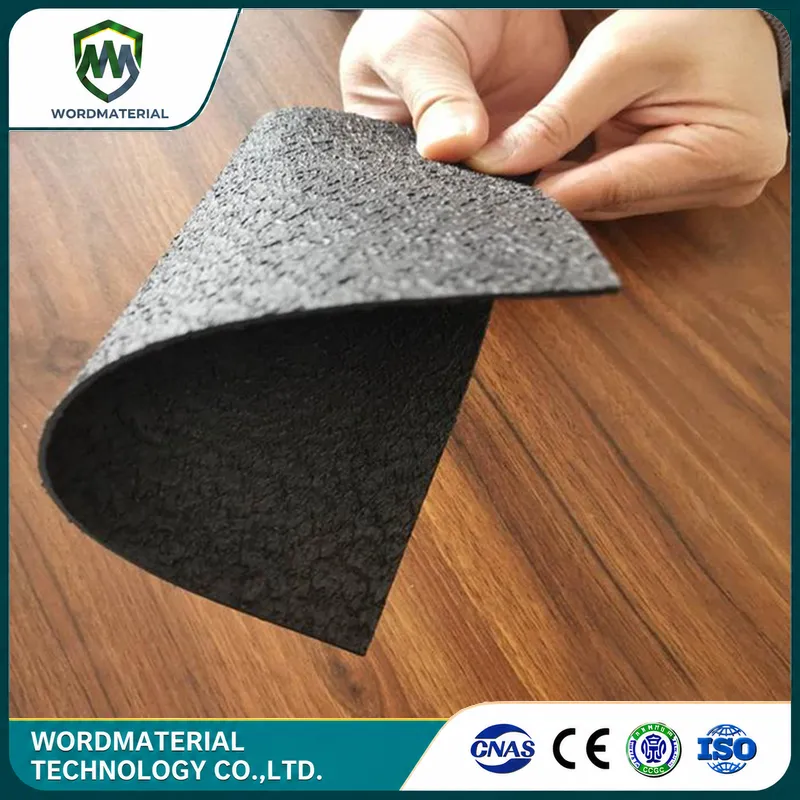

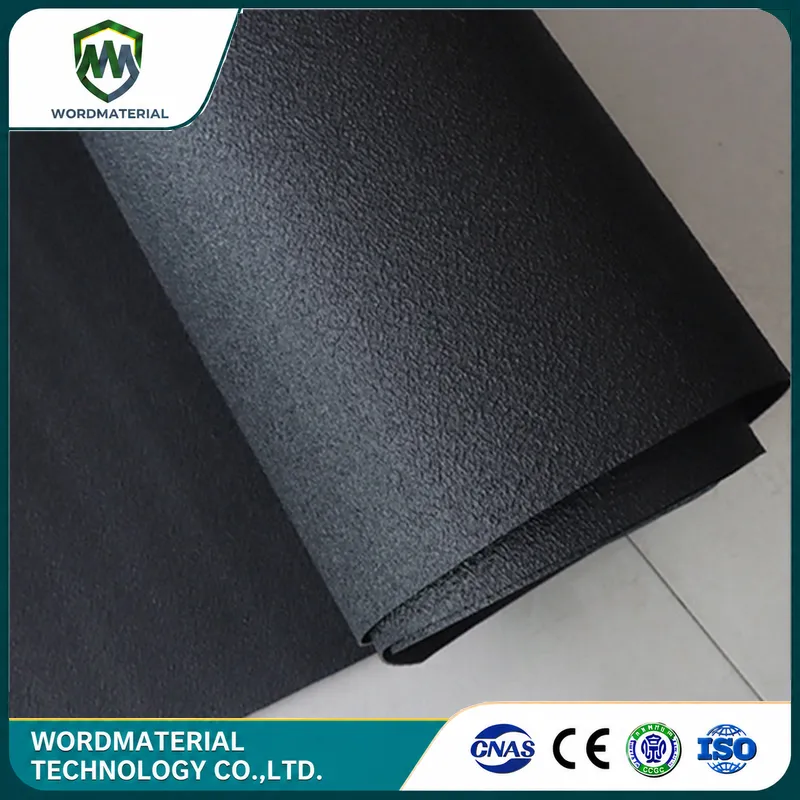

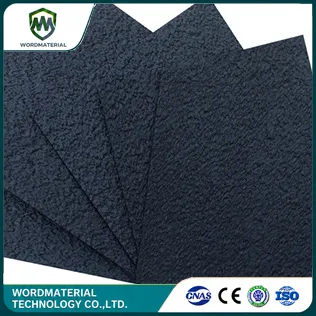

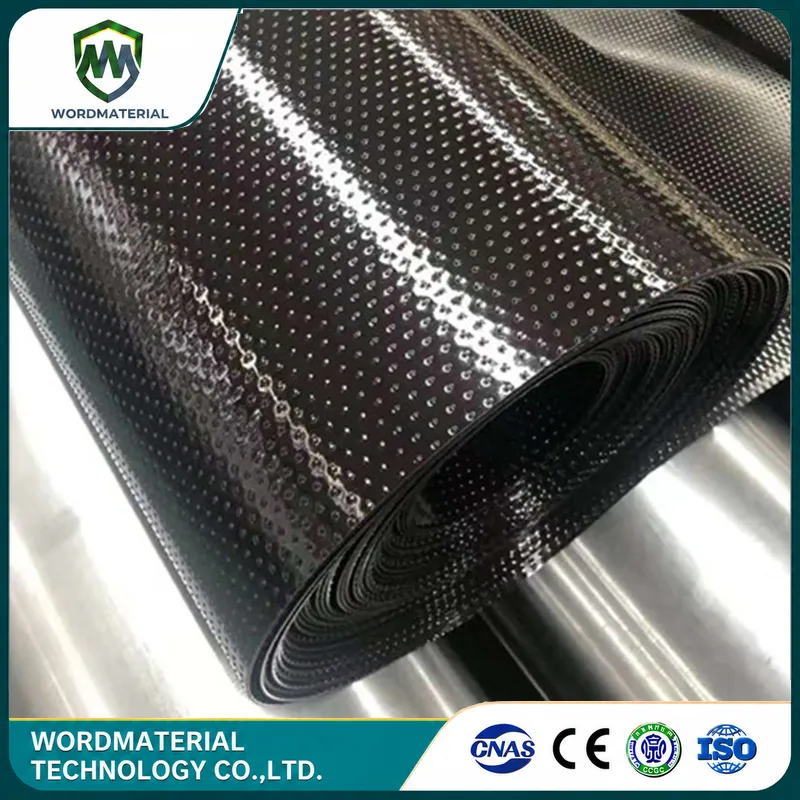

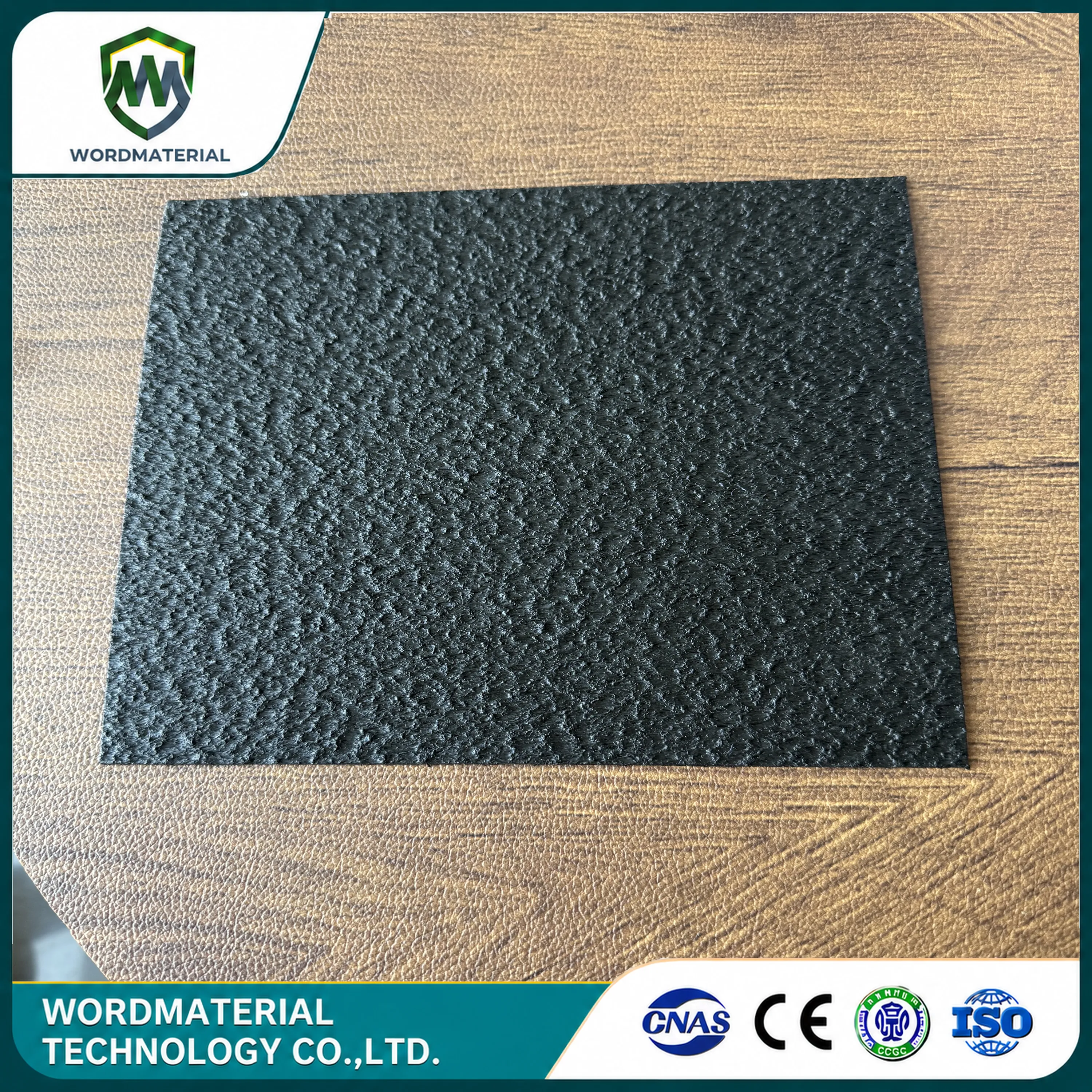

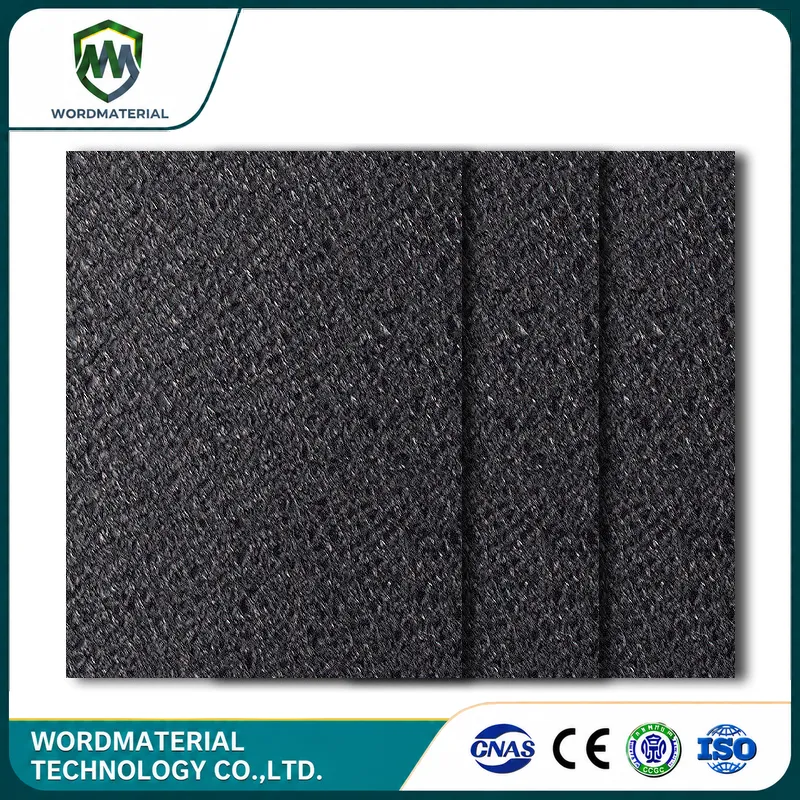

HDPE Geomembrane: Textured

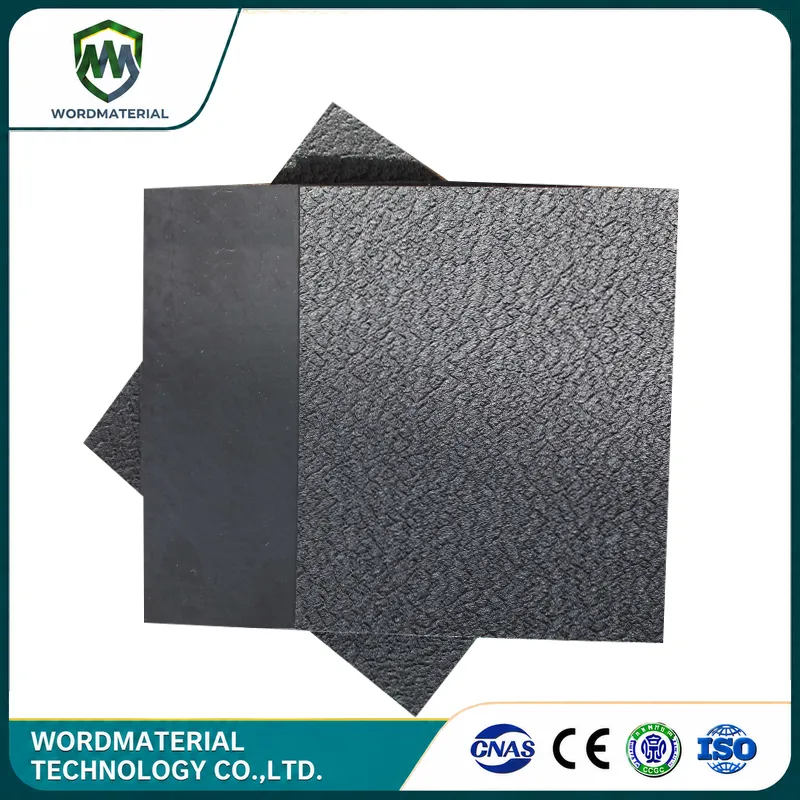

A high-performance seepage-proof material, available in single-sided and double-sided textured surface.
HDPE textured geomembrane is a high-performance impermeable material, designed for applications requiring higher interfacial friction. Our products can be manufactured according to GB/T, ASTM, ISO, or other standards, all made from high-purity new HDPE resin. By creating a uniform texture on the geomembrane surface, it significantly enhances friction with contact materials such as geotextiles, sand, or geogrids. HDPE textured geomembrane combines all the superior properties of smooth geomembranes with the engineering performance of a high-friction surface

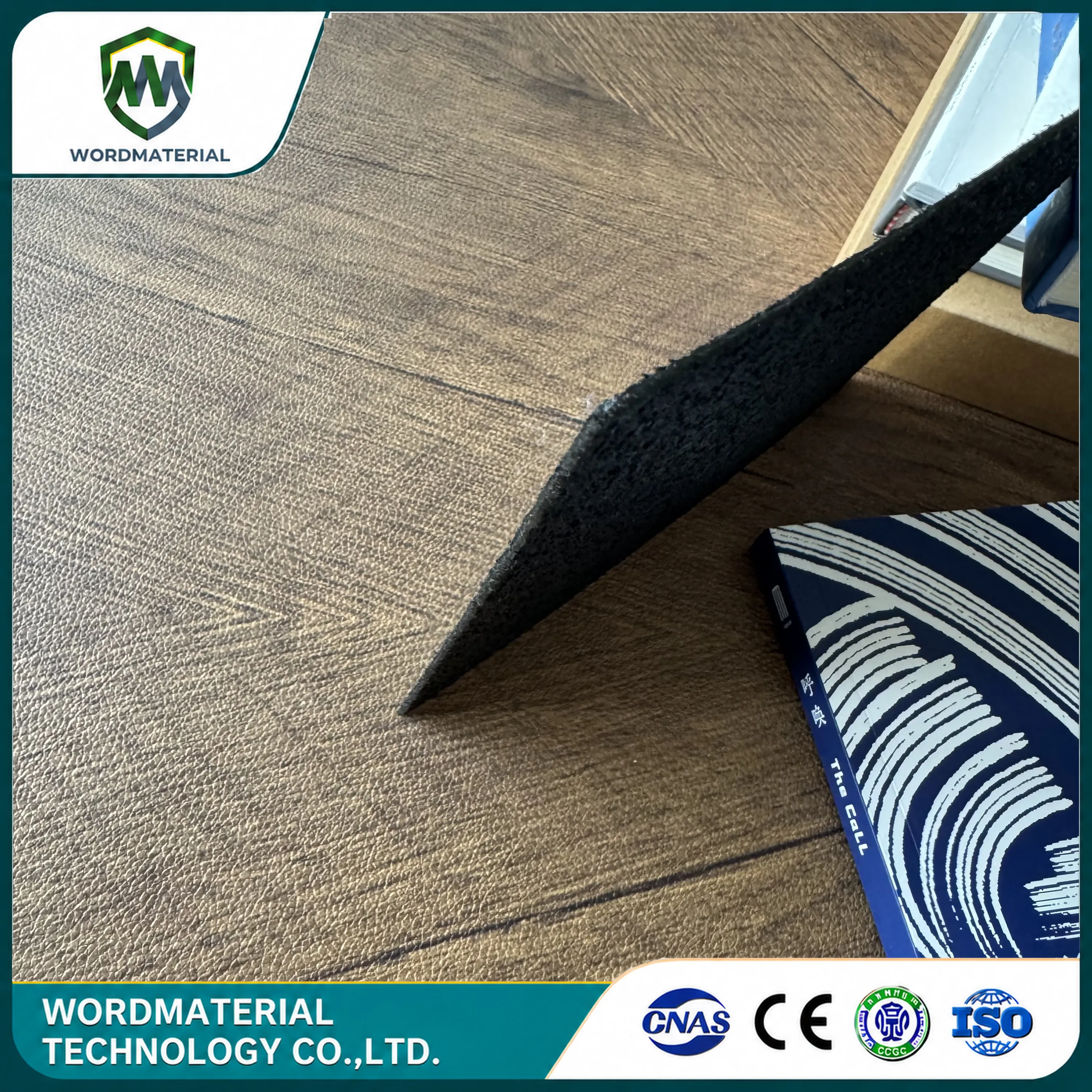

Production Process: Manufactured using a multi-layer co-extrusion blow molding process, which roughens the surface with nitrogen to create a uniform and durable raised texture. The average roughness height is ≥0.25mm, and the minimum is ≥0.20mm. The texture is firm and not easily worn off during construction.
Quality Control: The entire production process is monitored by automation. Strict factory inspections are conducted in accordance with standards, to ensure that the dimensions, appearance, and key properties (such as tensile strength and puncture resistance) of each roll of product exceed the standard requirements.

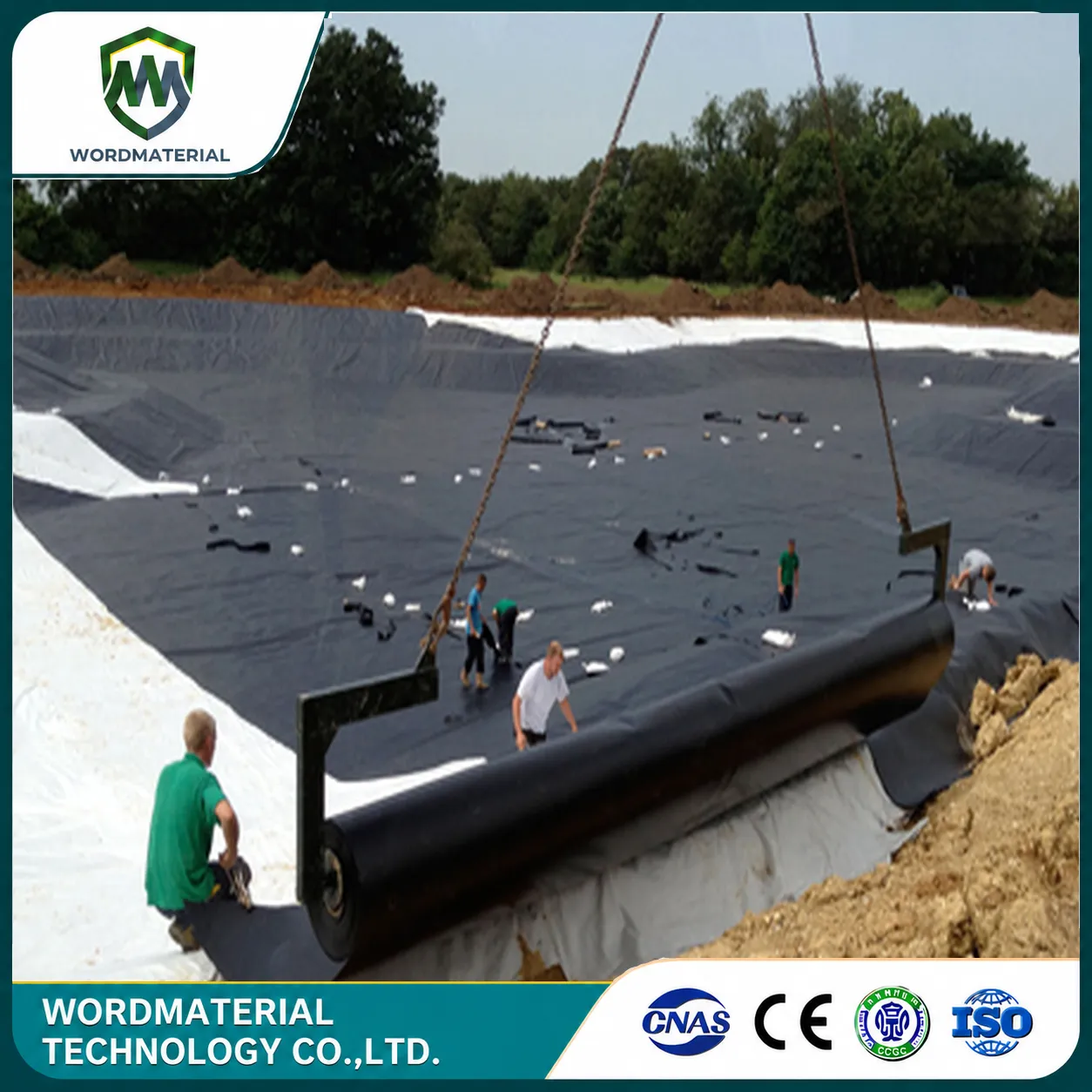

After-sales Service: We have over one million square meters of construction experience, and our team can provide on-site construction services. We also offer remote technical guidance to assist with welding and construction.
Advantages
- High coefficient of friction
- Excellent anchoring performance without sacrificing core performance.
- Ultra-high strength
- Chemical corrosion resistant
- Aging resistant
|
Specification for HDPE Geomembrane
(Single/Double Side Textured)
GB/T 17643-2025
|
||||||||
| No. |
公称厚度 Nominal Thickness mm |
0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 |
| 1 |
密度 Density g/cm3 |
≥0.940 | ||||||
| 2 |
毛糙高度平均值 Asperity Height mils (ave.) mm |
≥0.25 | ||||||
| 3 |
毛糙高度最小值 Asperity Height mils (min.) mm |
≥0.20 | ||||||
| 4 |
拉伸屈服强度(纵、横向) Tensile Yield Strength (MD and XMD) N/mm |
≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| 5 |
拉伸断裂强度(纵、横向) Tensile Break Strength (MD and XMD) N/mm |
≥12 | ≥15 | ≥20 | ≥24 | ≥32 | ≥39 | ≥48 |
| 6 |
拉伸屈服应变(纵、横向) Tensile Yield Elongation (MD and XMD) % |
10~16 | ||||||
| 7 |
拉伸断裂应变(纵、横向) Tensile Break Elongation (MD and XMD) % |
≥100 | ||||||
| 8 |
直角撕裂负荷(纵、横向) Right-angle Tear Resistance (MD and XMD) N |
≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| 9 |
刺破强力 Puncture Strength N |
≥200 | ≥270 | ≥335 | ≥400 | ≥535 | ≥670 | ≥800 |
| 10 |
耐应力开裂(纵、横向) Stress Cracking Resistance (MD and XMD) h |
≥500 | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 |
| 11 |
炭黑含量 Carbon Black Content % |
2.0~2.8 | ||||||
| 12 |
炭黑分散性 Carbon Black Dispersion |
Of the 10 data, there is no more than one level 3, and no levels 4 or 5. | ||||||
| 13 |
常压氧化诱导时间(常压OIT) Oxidative Induction Time (Standard OTI) min |
≥100 | ||||||
| 14 |
高压氧化诱导时间(常压OIT) Oxidative Induction Time (High Pressure OTI) min |
≥400 | ||||||
| 15 |
低温冲击脆化性能 Low-temperature Impact Embrittlement Performance |
Pass | ||||||
| 16 |
水蒸气渗透系数 Water Vapor Permeability g·cm/(cm2·s·Pa) |
≤1.0X10-13 | ||||||
| 17 |
尺寸稳定性 Dimensional Stability % |
±2.0 | ||||||
| 18 |
85℃热老化(90d后常压OIT保留率) Oven Aging at 85°C Standard OIT- % retained after 90 days % |
≥55 | ||||||
| 19 |
耐紫外老化性能(1600h后OIT保留率) UV Resistance Standard OIT- % retained after 1600 hrs % |
≥50 | ||||||
|
Note:
* Item 11 and 12 apply only to black polyethylene geomembranes.
* Items 13, 14, and 19 are allowed to choose one test.
|
||||||||

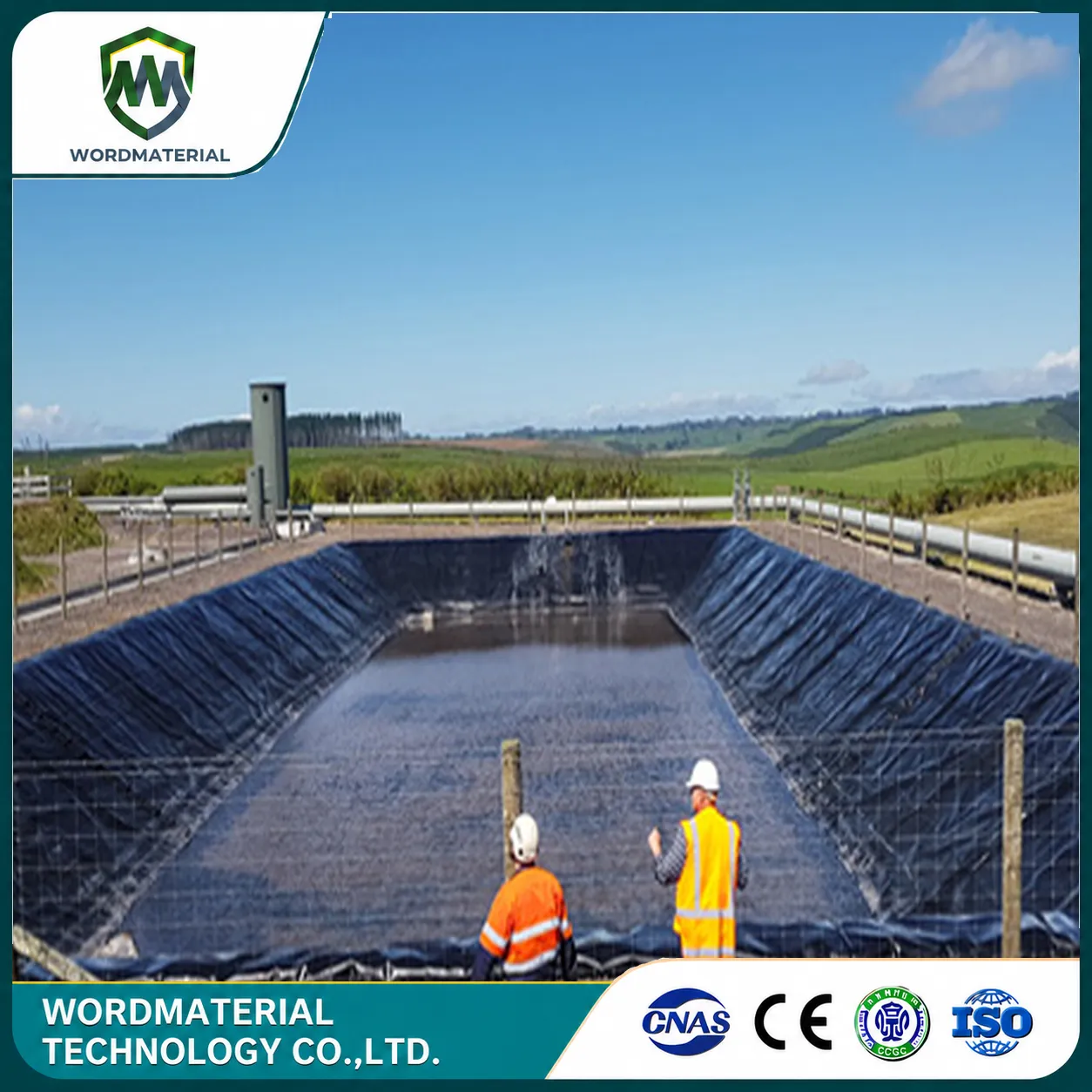

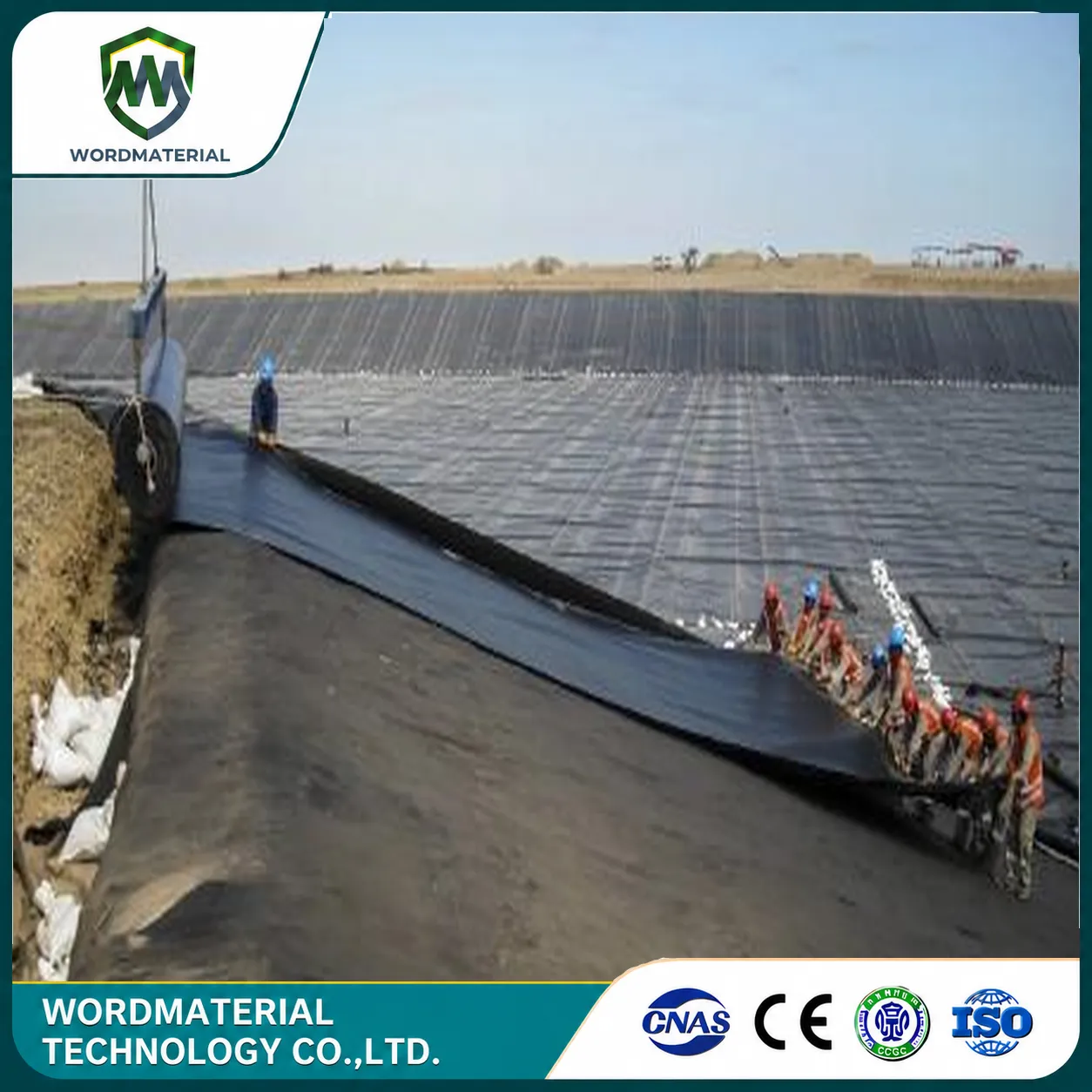

- Slope Protection Engineering:

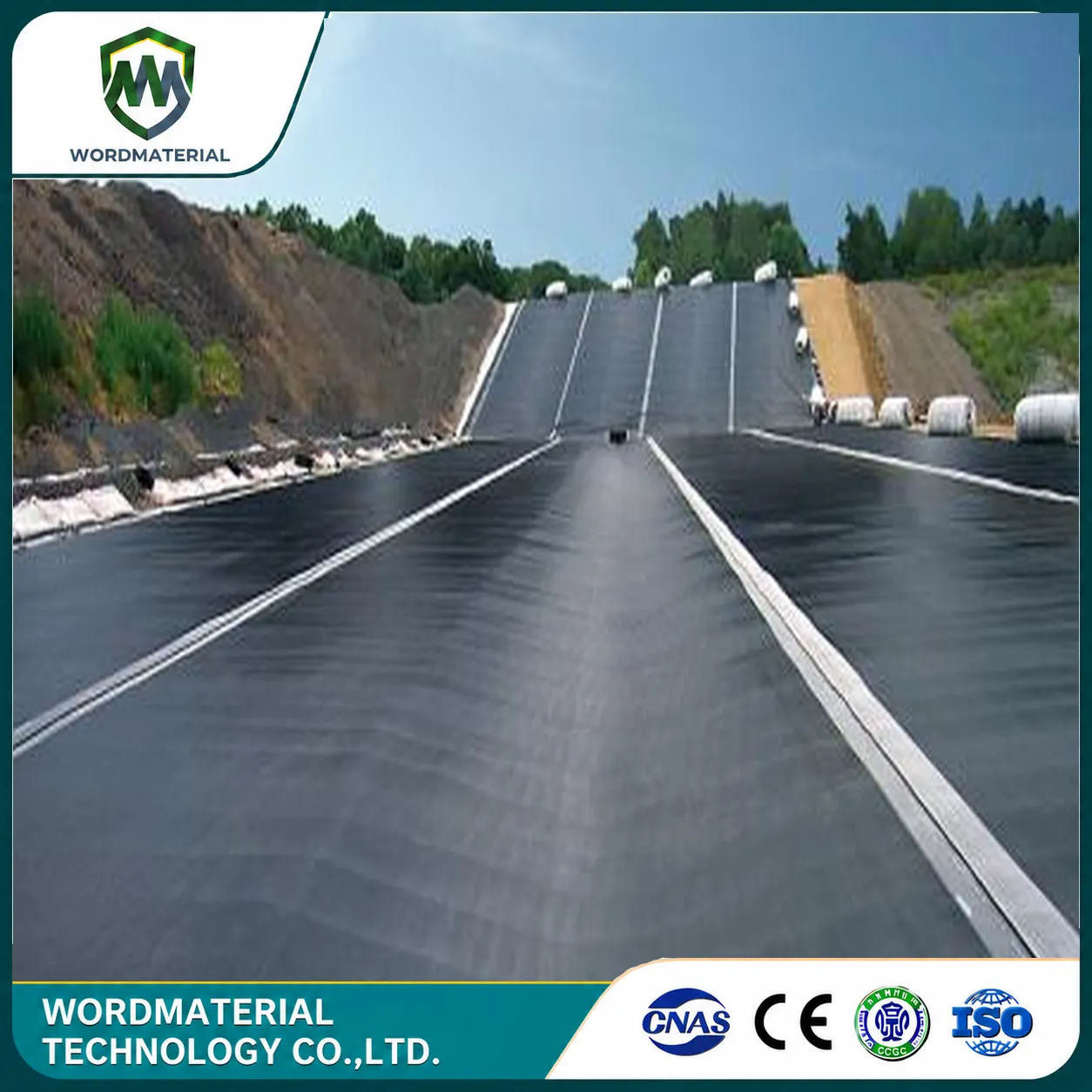

- Seepage prevention for landfill slopes, tailings dam slopes, and earth-rock dam slopes of reservoirs.
- Landfill Capping System:
- Used in conjunction with geonets and geotextiles to form a stable final capping layer.
- Special Foundation Treatment:
- Used for soft foundations or sites prone to uneven settlement, utilizing friction to disperse stress.
- Roof Gardens and Green Walls:
- Serves as a waterproof and root-barrier layer, while also providing a surface conducive to the anchoring of vegetation.
