Geomembrane Product Features
- Raw Material: High Density Polyethylene, ≥0.940 g/cm3.
- Thickness: 0.3-3mm.
- Width: 6-8m, can be customized.
- Standard: GB/T 17643-2025, GRI-GM13, ASTM, ISO...
- Delivery Time: Have stock.

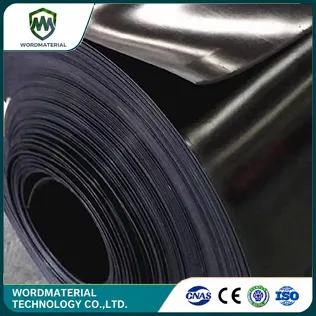

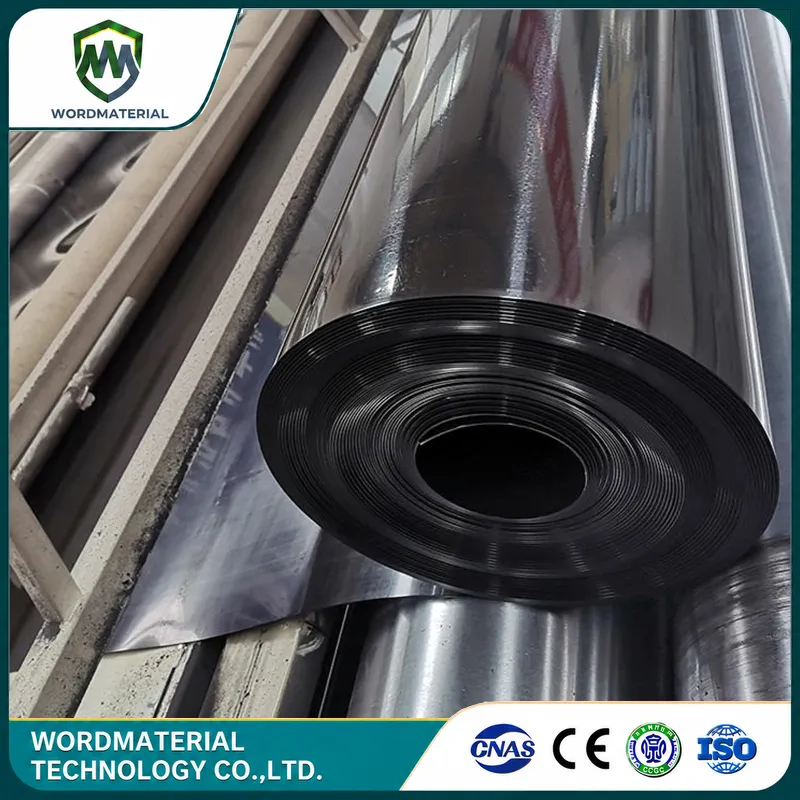

- Packaging: 50-100 m/roll, can be customized.

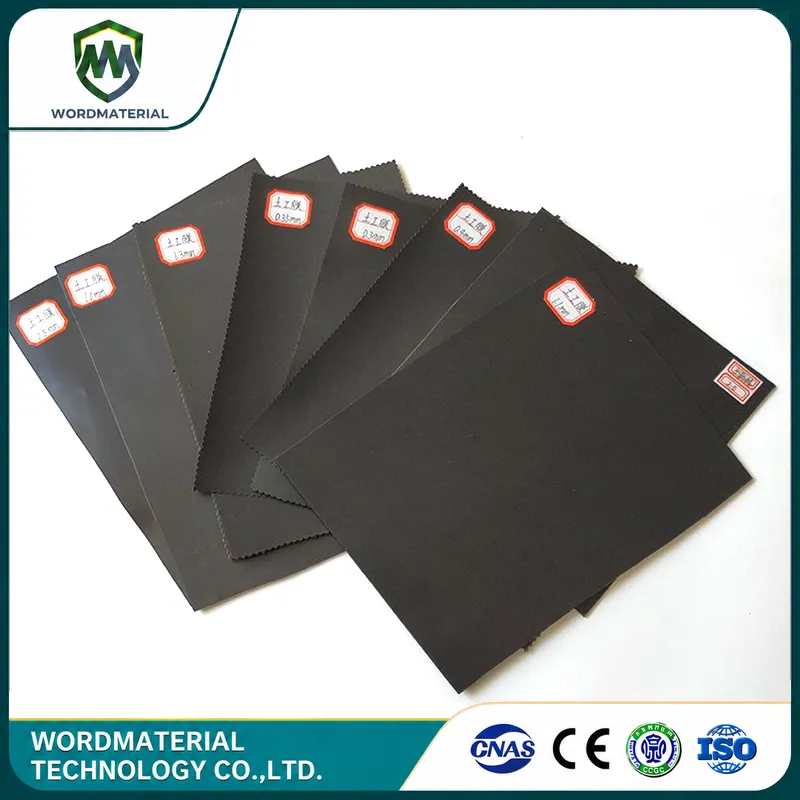

- Free Samples: Available.
- MOQ: Trial or bulk orders are acceptable.

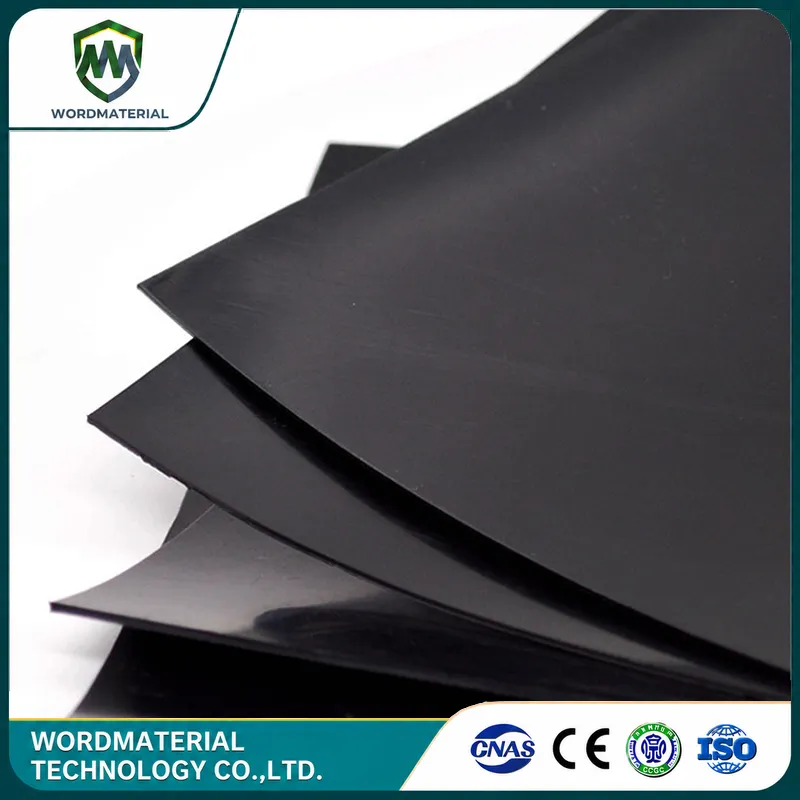

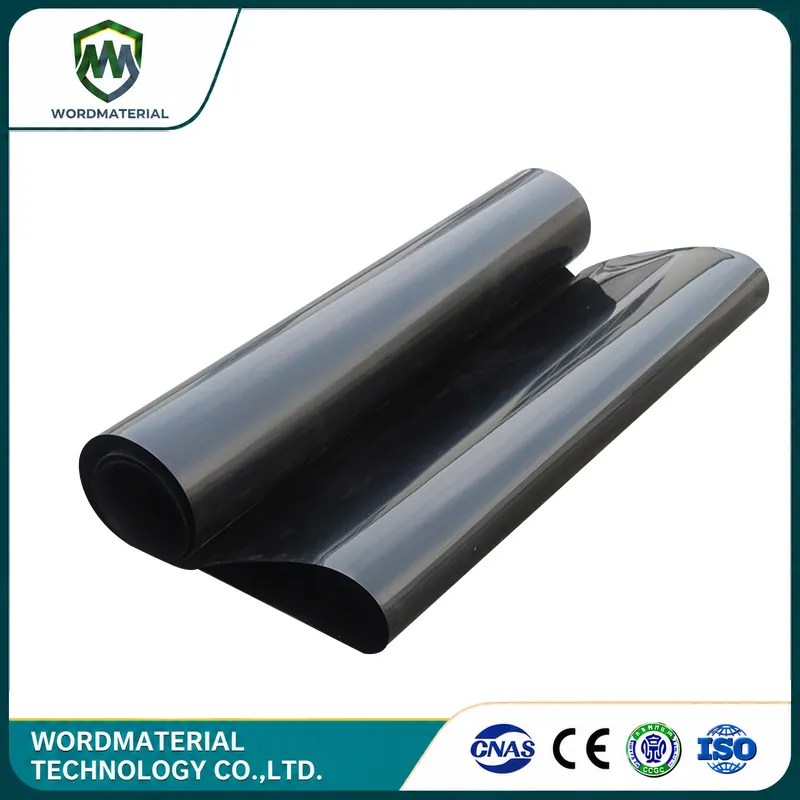

HDPE Geomembrane: Smooth
A high-performance seepage-proof material.
HDPE smooth geomembrane is our core seepage control material, manufactured in strict accordance with GB/T, ASTM, ISO, and other standards. Our HDPE geomembranes are available in various models, all made from high-purity new HDPE resin and a special anti-aging masterbatch (carbon black content 2.0-2.8%). Its smooth, flat surface provides excellent seepage control and superior chemical stability, making it the most reliable seepage control solution for environmental engineering, water conservancy projects, and industrial applications worldwide.
Production Process: Manufactured using internationally advanced multi-layer co-extrusion blow molding technology. This process ensures uniform composition throughout the thickness direction, eliminates any shortcomings in physical properties, and achieves ultra-wide widths (up to 8 meters or more), effectively reducing on-site welding seams and improving the overall reliability of the waterproofing system
Quality Control: The entire production process is monitored by automation. Strict factory inspections are conducted in accordance with standards, to ensure that the dimensions, appearance, and key properties (such as tensile strength and puncture resistance) of each roll of product exceed the standard requirements.
After-sales Service: We have over one million square meters of construction experience, and our team can provide on-site construction services. We also offer remote technical guidance to assist with welding and construction.
Advantages
- Ultimate seepage-proof
- Ultra-high strength
- Chemical corrosion resistant
- Aging resistant
- Easy to install
|
Specification for HDPE Geomembrane (Standard, Smooth)
GB/T 17643-2025
|
||||||||||
| No. |
公称厚度 Nominal Thickness mm |
0.3 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 |
| 1 |
密度 Density g/cm3 |
≥0.940 | ||||||||
| 2 |
拉伸屈服强度(纵、横向) Tensile Yield Strength (MD and XMD) N/mm |
≥4 | ≥7 | ≥10 | ≥13 | ≥16 | ≥20 | ≥26 | ≥33 | ≥40 |
| 3 |
拉伸断裂强度(纵、横向) Tensile Break Strength (MD and XMD) N/mm |
≥6 | ≥10 | ≥15 | ≥20 | ≥25 | ≥30 | ≥40 | ≥50 | ≥60 |
| 4 |
拉伸屈服应变(纵、横向) Tensile Yield Elongation (MD and XMD) % |
_ | _ | _ | 10~16 | |||||
| 5 |
拉伸断裂应变(纵、横向) Tensile Break Elongation (MD and XMD) % |
≥600 | ||||||||
| 6 |
直角撕裂负荷(纵、横向) Right-angle Tear Resistance (MD and XMD) N |
≥34 | ≥56 | ≥84 | ≥115 | ≥140 | ≥170 | ≥225 | ≥280 | ≥340 |
| 7 |
刺破强力 Puncture Strength N |
≥72 | ≥120 | ≥180 | ≥240 | ≥300 | ≥360 | ≥480 | ≥600 | ≥720 |
| 8 |
炭黑含量 Carbon Black Content % |
2.0~2.8 | ||||||||
| 9 |
炭黑分散性 Carbon Black Dispersion |
Of the 10 data, there is no more than one level 3, and no levels 4 or 5. | ||||||||
| 10 |
常压氧化诱导时间(常压OIT) Oxidative Induction Time (Standard OTI) min |
≥60 | ||||||||
| 11 |
低温冲击脆化性能 Low-temperature Impact Embrittlement Performance |
Pass | ||||||||
| 12 |
水蒸气渗透系数 Water Vapor Permeability g·cm/(cm2·s·Pa) |
≤1.0X10-13 | ||||||||
| 13 |
尺寸稳定性 Dimensional Stability % |
±2.0 | ||||||||
|
Note: * Item 8 and 9 apply only to black polyethylene geomembranes. |
||||||||||
|
Specification for HDPE Geomembrane (Reinforced, Smooth)
GB/T 17643-2025
|
||||||||
| No. |
公称厚度 Nominal Thickness mm |
0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 |
| 1 |
密度 Density g/cm3 |
≥0.940 | ||||||
| 2 |
拉伸屈服强度(纵、横向) Tensile Yield Strength (MD and XMD) N/mm |
≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| 3 |
拉伸断裂强度(纵、横向) Tensile Break Strength (MD and XMD) N/mm |
≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
| 4 |
拉伸屈服应变(纵、横向) Tensile Yield Elongation (MD and XMD) % |
10~16 | ||||||
| 5 |
拉伸断裂应变(纵、横向) Tensile Break Elongation (MD and XMD) % |
≥700 | ||||||
| 6 |
直角撕裂负荷(纵、横向) Right-angle Tear Resistance (MD and XMD) N |
≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| 7 |
刺破强力 Puncture Strength N |
≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |
| 8 |
耐应力开裂(纵、横向) Stress Cracking Resistance (MD and XMD) h |
≥500 | ||||||
| 9 |
炭黑含量 Carbon Black Content % |
2.0~2.8 | ||||||
| 10 |
炭黑分散性 Carbon Black Dispersion |
Of the 10 data, there is no more than one level 3, and no levels 4 or 5. | ||||||
| 11 |
常压氧化诱导时间(常压OIT) Oxidative Induction Time (Standard OTI) min |
≥100 | ||||||
| 12 |
高压氧化诱导时间(常压OIT) Oxidative Induction Time (High Pressure OTI) min |
≥400 | ||||||
| 13 |
低温冲击脆化性能 Low-temperature Impact Embrittlement Performance |
Pass | ||||||
| 14 |
水蒸气渗透系数 Water Vapor Permeability g·cm/(cm2·s·Pa) |
≤1.0X10-13 | ||||||
| 15 |
尺寸稳定性 Dimensional Stability % |
±2.0 | ||||||
| 16 |
85℃热老化(90d后常压OIT保留率) Oven Aging at 85°C Standard OIT- % retained after 90 days % |
≥55 | ||||||
| 17 |
耐紫外老化性能(1600h后OIT保留率) UV Resistance Standard OIT- % retained after 1600 hrs % |
≥50 | ||||||
|
Note: * Item 9 and 10 apply only to black polyethylene geomembranes. * Items 11, 12, and 17 are allowed to choose one test. |
||||||||

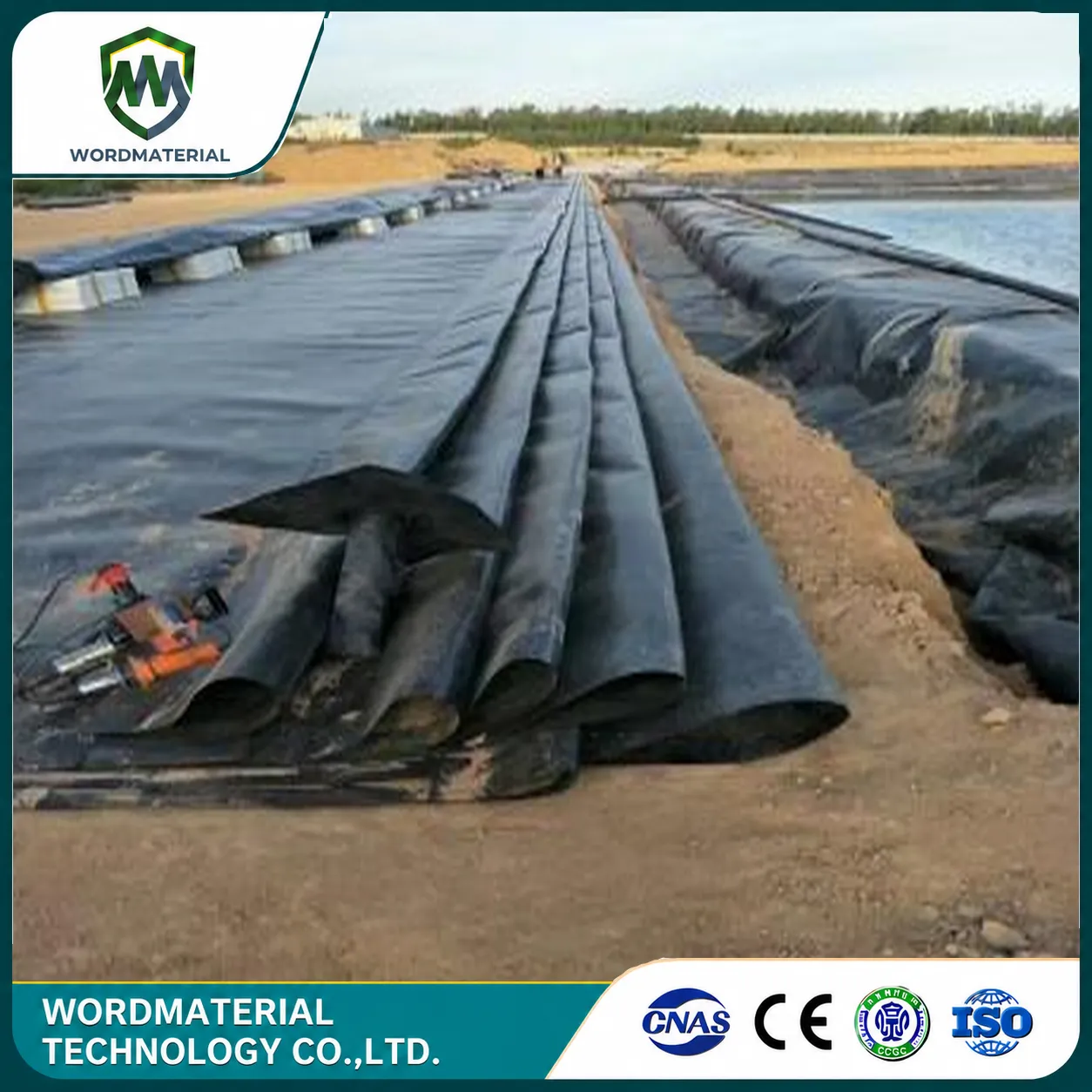

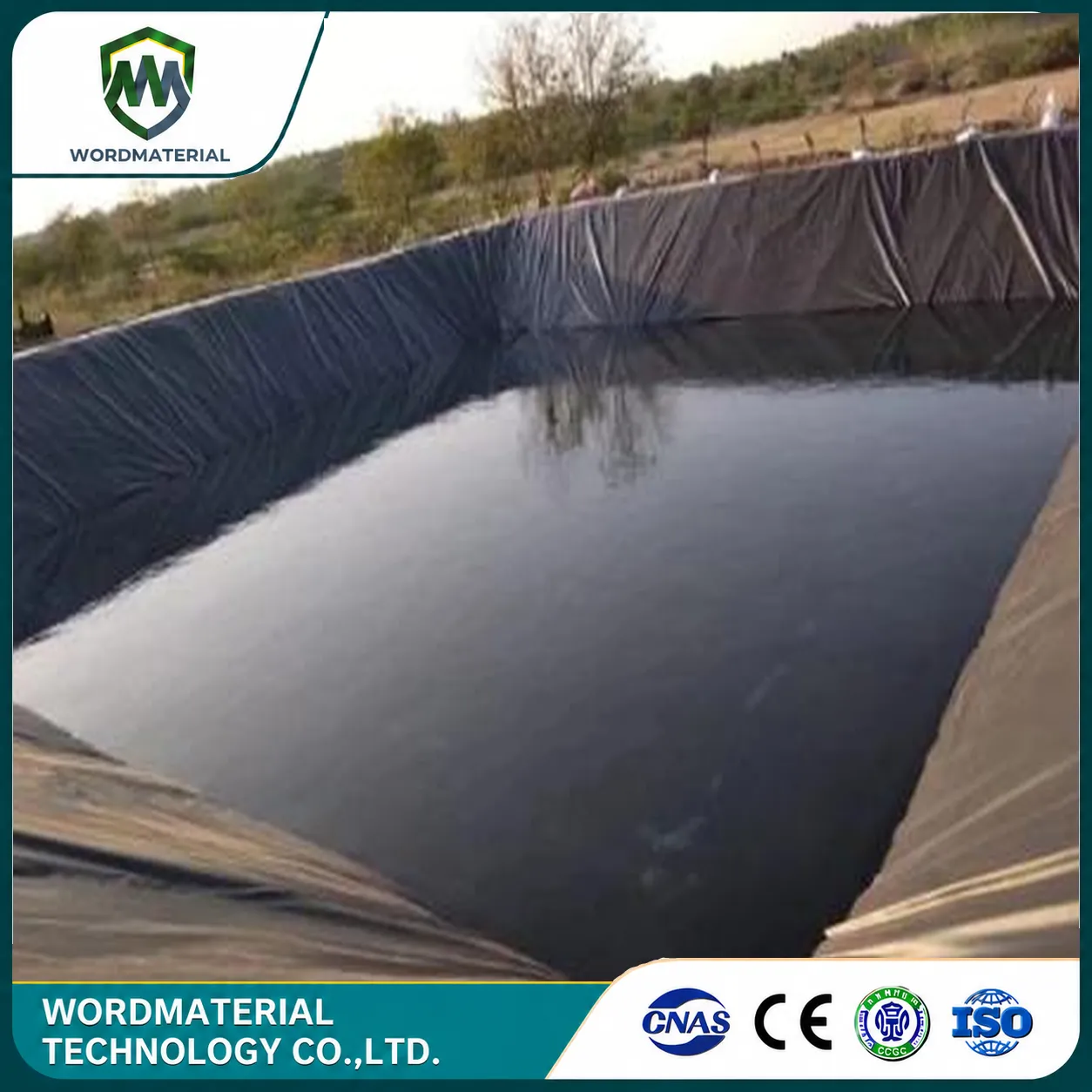

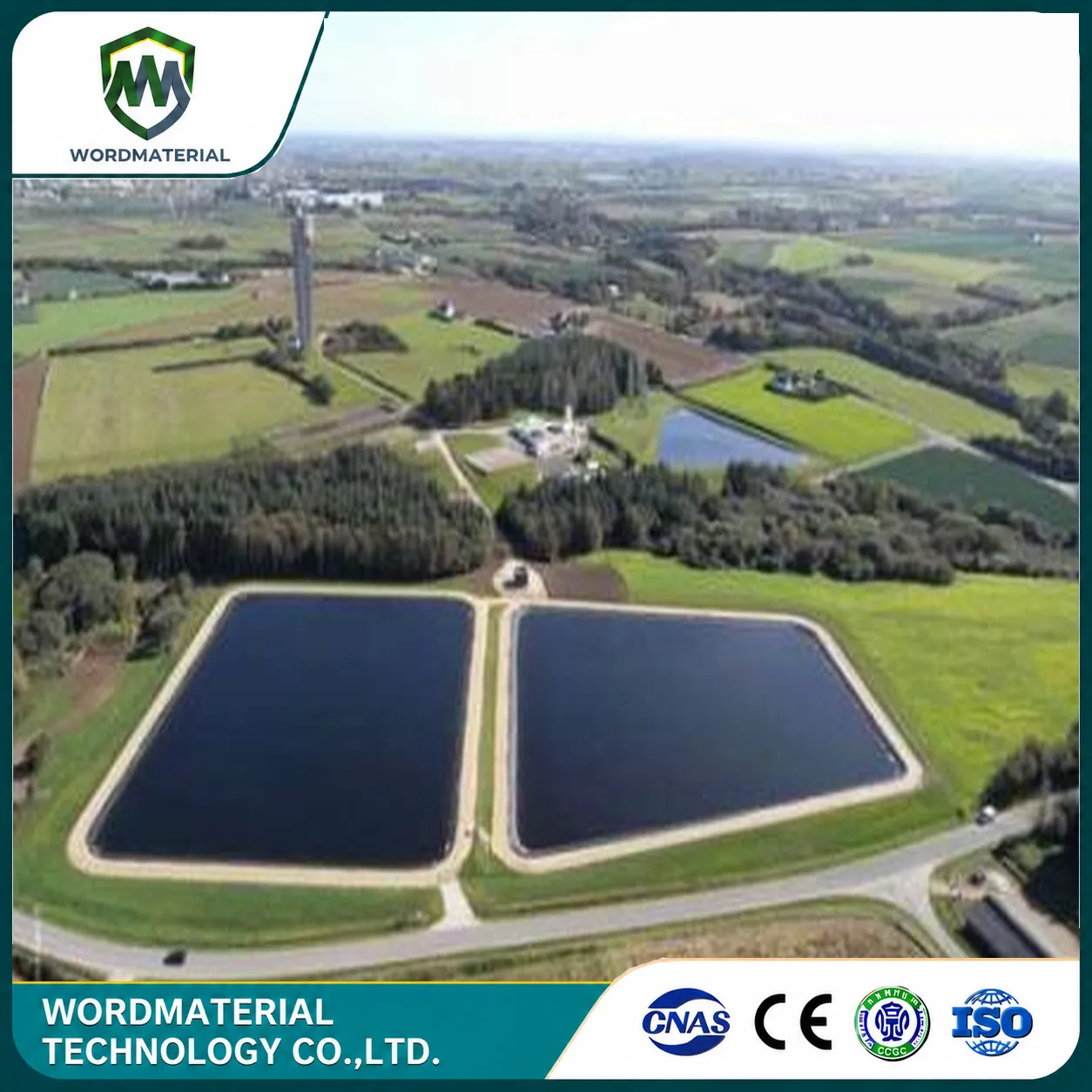

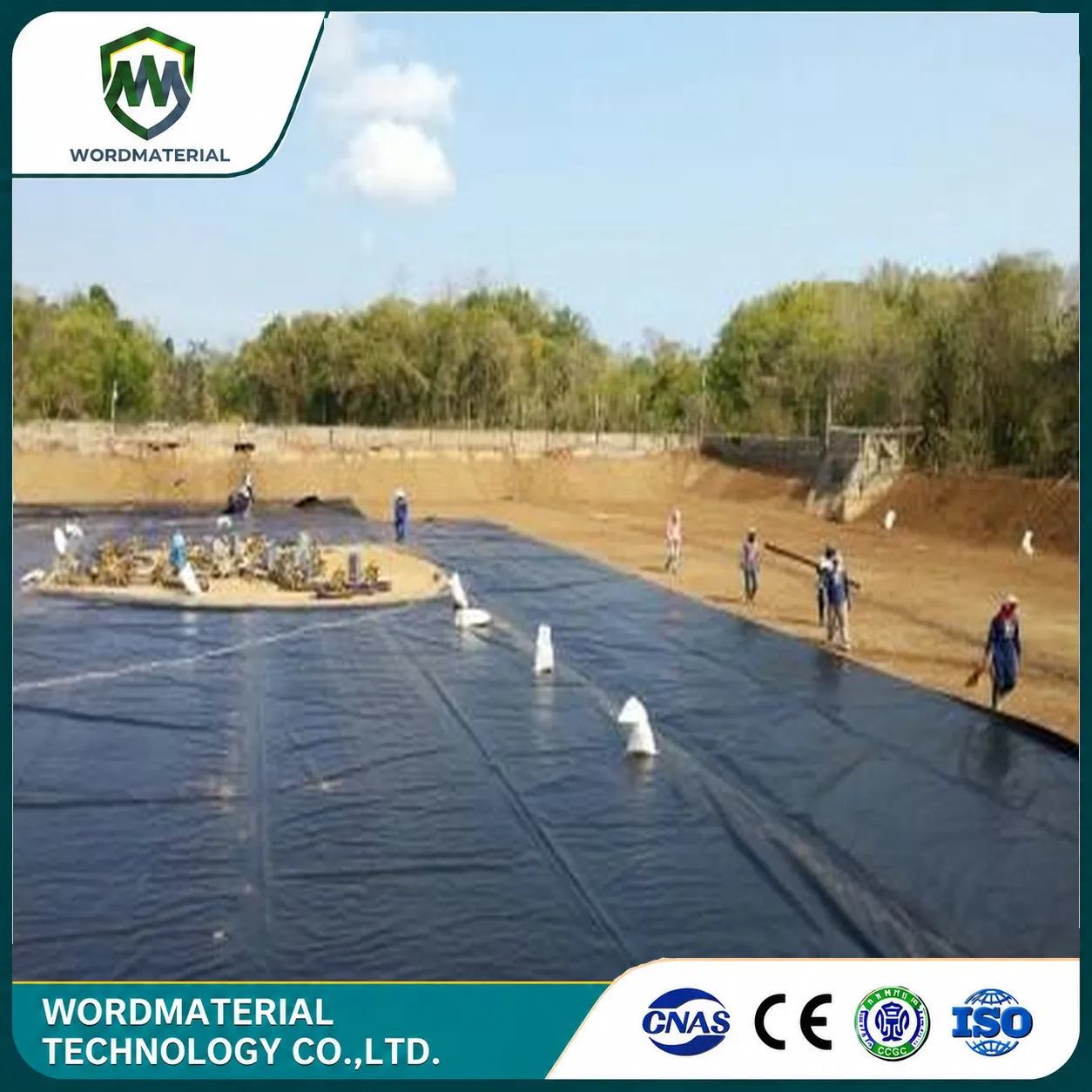

- Environmental Engineering:
- Solid waste landfills (bottom lining and sealing), hazardous waste disposal sites, sewage treatment ponds.
- Water Conservancy Engineering:
- Drinking water reservoirs, irrigation canals, dam seepage prevention, artificial landscape lakes.
- Mining and Energy:
- Heap leaching ponds, tailings ponds, evaporation ponds, seepage prevention dikes for petrochemical plants.
- Municipal Engineering:
- Waterproofing layers for underground tunnels and subway projects, damp-proof layers for basements.
