Geomembrane Product Features
- Raw Material: HDPE or other polymer.
- Tensile Strength: ≥ 6 kN/m for draiange geonet.
- Carbon black content: ≥1%
- Standard: GB/T 19407-2004, ASTM, ISO...
- Delivery Time: Have stock.
- Packaging: 50-100 m/roll, can be customized.
- Free Samples: Available.
- MOQ: Trial or bulk orders are acceptable.

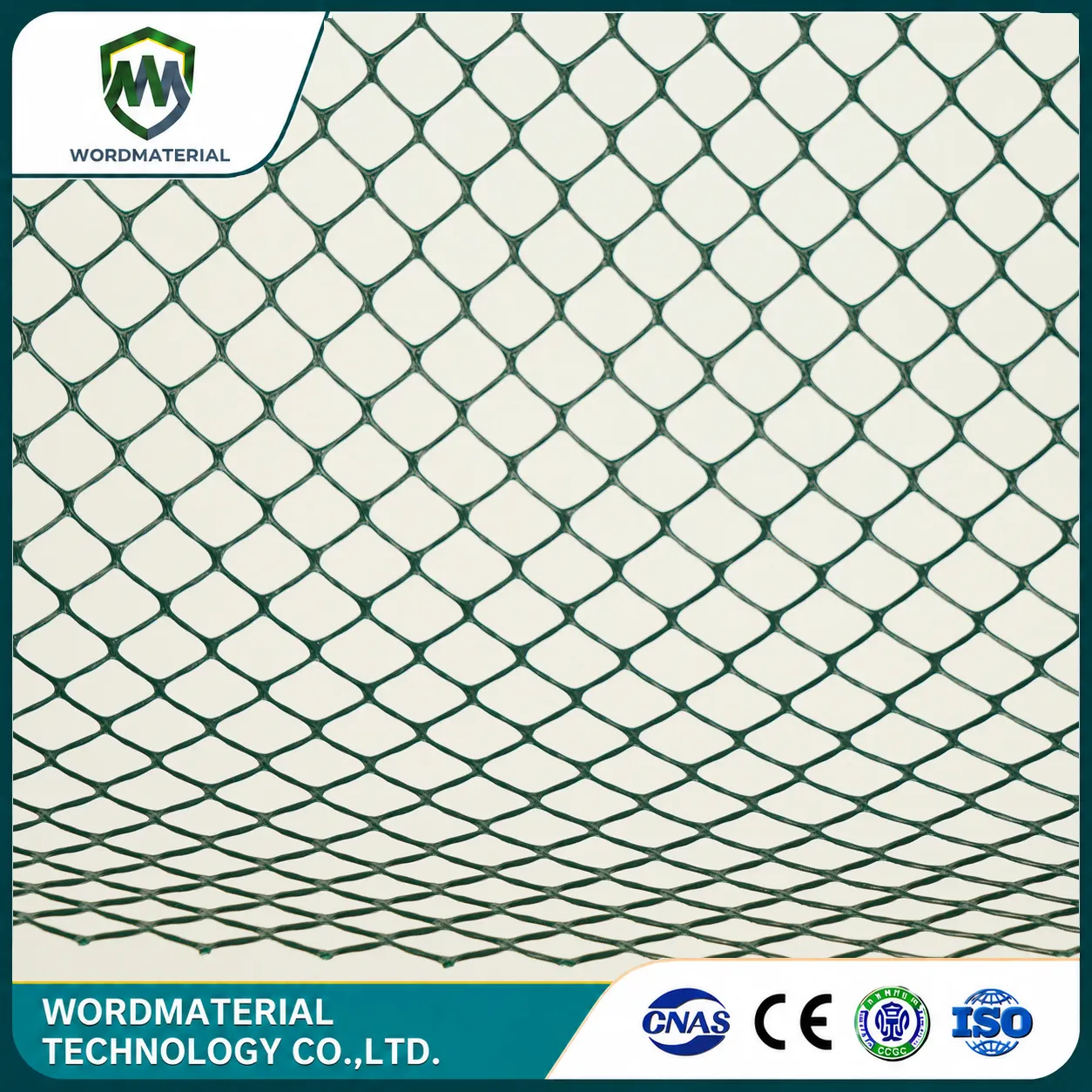

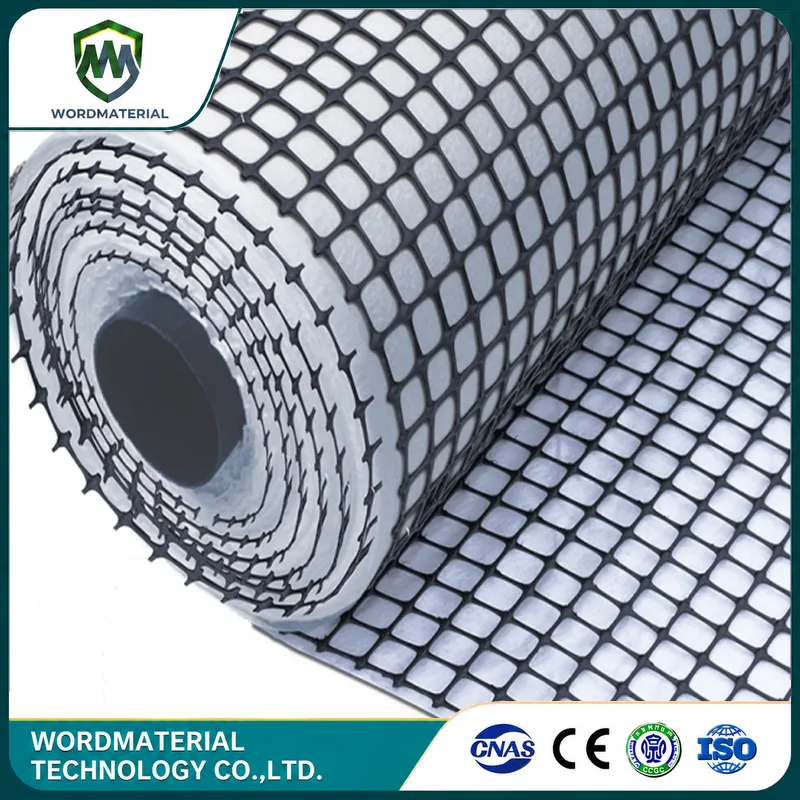

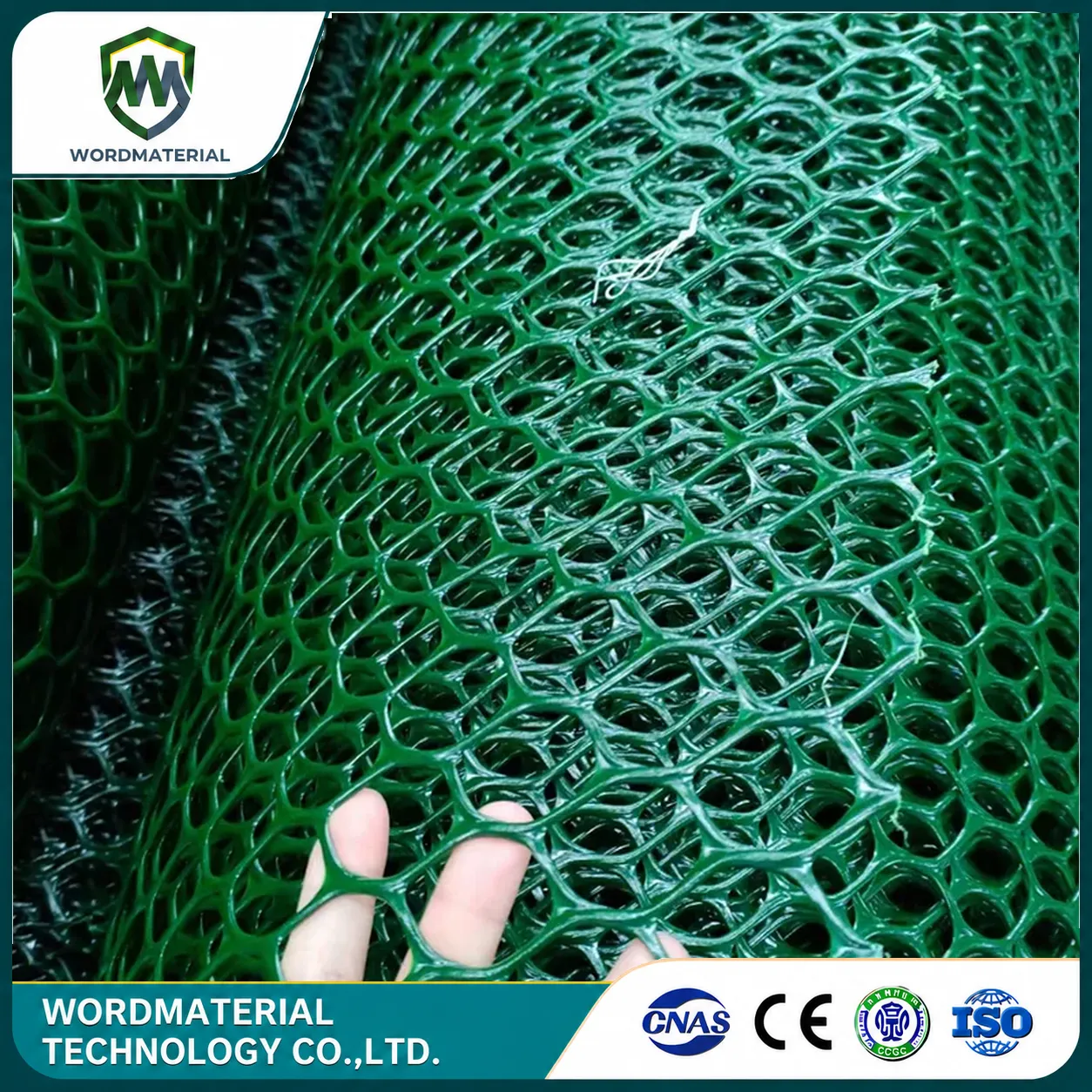

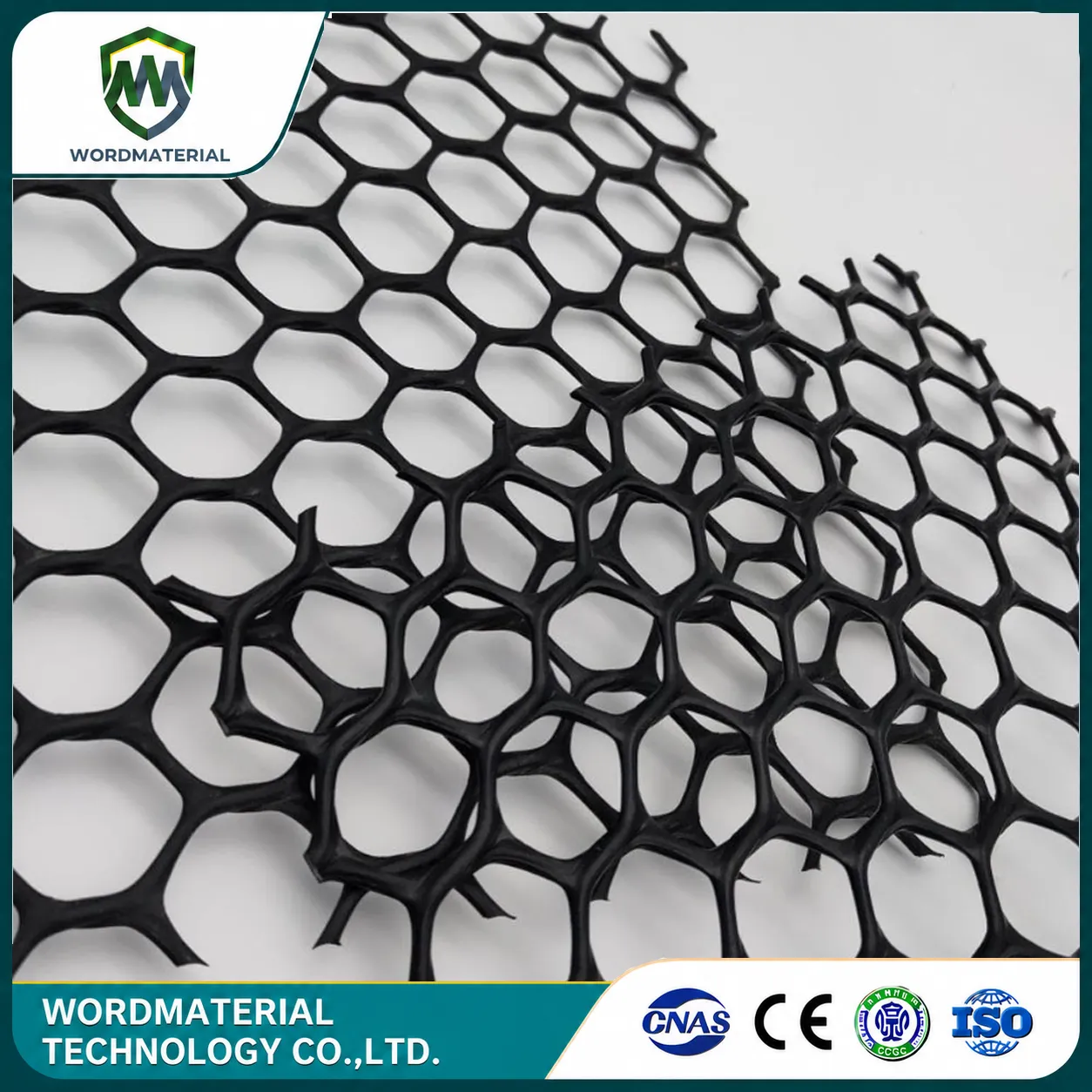

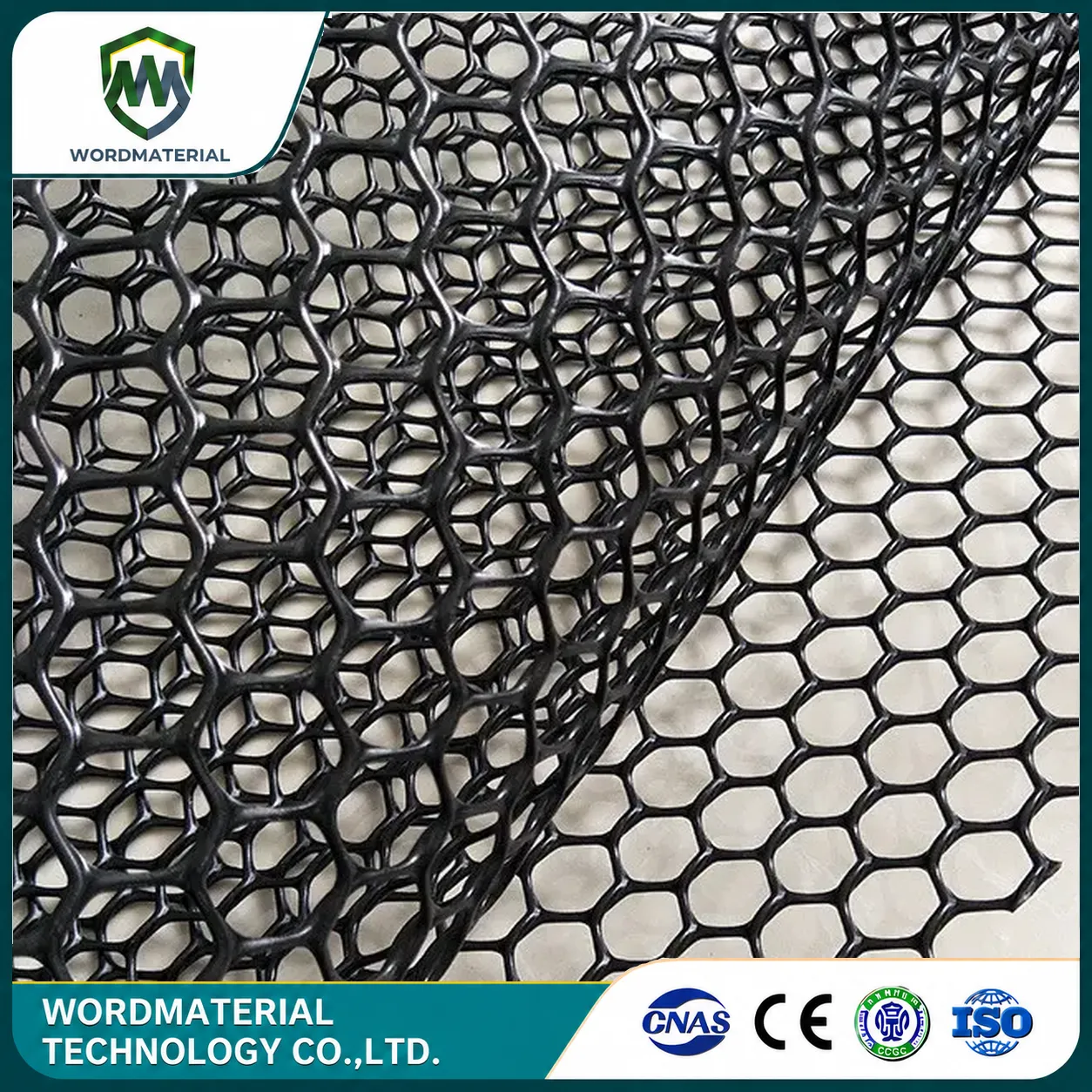

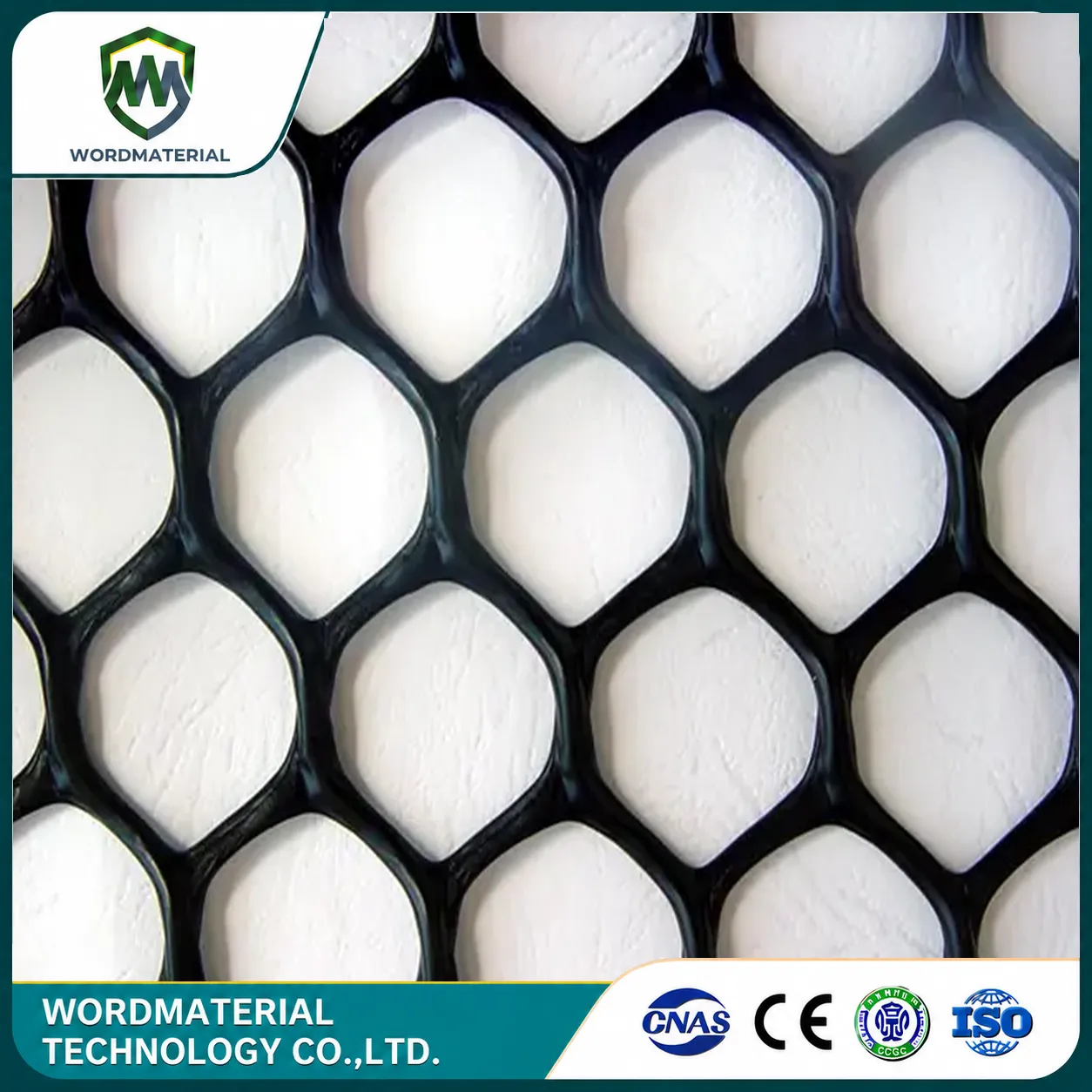

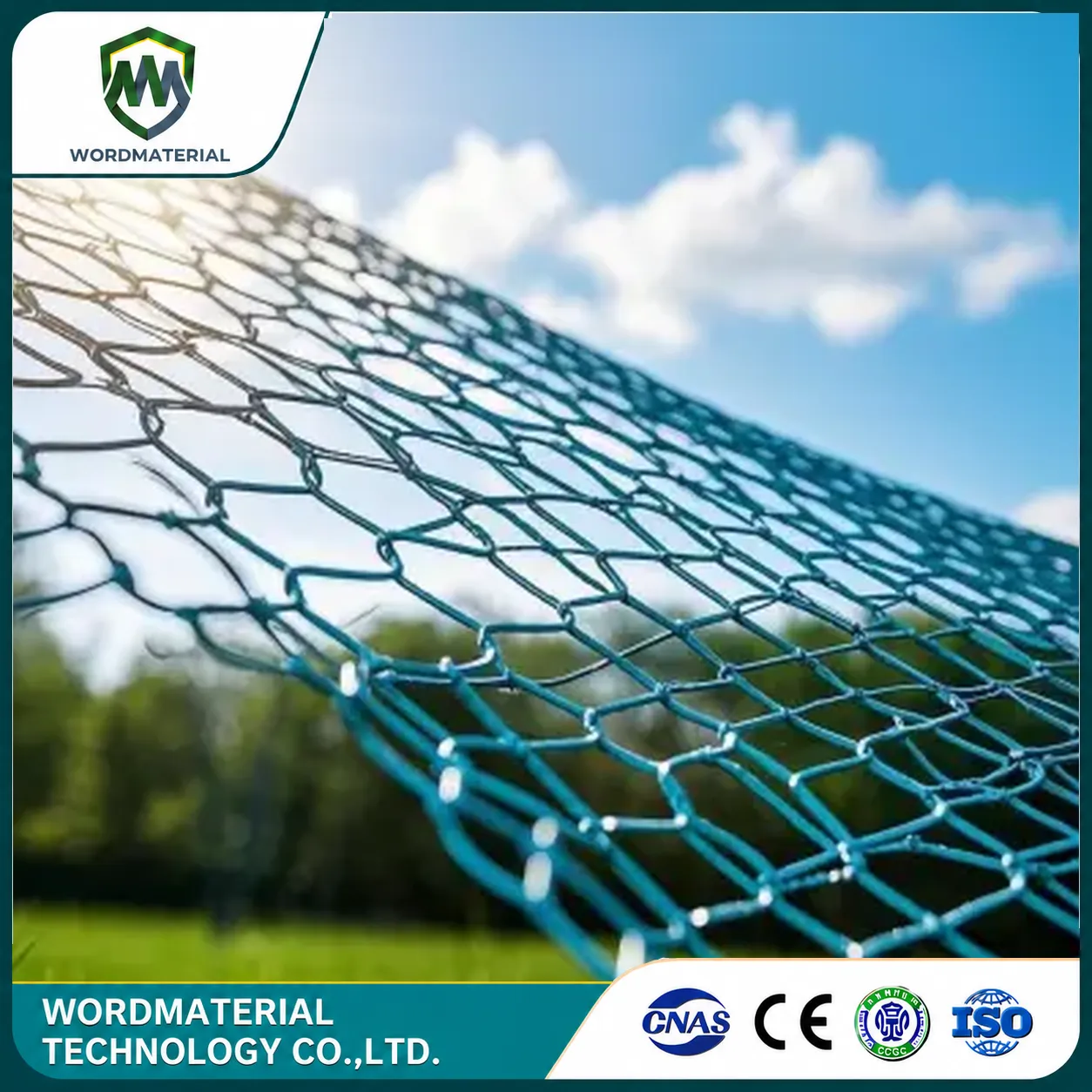

Geonet
Geonets are mesh geosynthetic materials, including civil engineering and drainage geonets. Civil engineering geonet has similar applications to geogrids, but with lower tensile strength and cost. Drainage geonet can be combined with geotextiles to form composite drainage materials.
Geonets are two-dimensional geosynthetic materials with a regular mesh structure, made primarily from HDPE or other polymers through extrusion molding. It has two categories based on their application: civil engineering and drainage geonets. Civil engineering geonets have both reinforcement and drainage functions, with tensile strength and cost significantly lower than geogrids. Drainage geonets are primarily used as drainage layers and can be combined with geotextiles to form composite drainage materials.
Our products can be manufactured according to GB/T, ASTM, ISO, and other standards, and all raw materials are pure new.
Production Process: Extrusion, the mold determines the shape and size of the mesh.
Quality Control: The entire production process is monitored by automation. Strict factory inspections are conducted, to ensure that key quality control points fully comply with the standards.
After-sales Service: We have over one million square meters of construction experience, and our team can provide on-site construction services. We also offer remote technical guidance to assist with welding and construction.
Advantages
- It possesses a certain tensile strength and is relatively inexpensive compared to geogrids.
- ExGood flexibility: adaptable to complex terrain
- Drainage geonet has high drainage efficiency.
|
Standard Specification for Geonet
GB/T 19470-2004
|
||||||
| Item | Category | Civil Engineering Geonet | Drainage Geonet | |||
| Model | CE121 | CE131 | CE151 | DN1 | HF10 | |
| 1 |
单位面积质量 Mass per Unit Area g/m² |
730±35 | 630±30 | 550±25 | 750±35 | 1240±60 |
| 2 |
厚度 Thickness mm |
- | - | - | ≥6.0 | ≥5.0 |
| 3 |
网孔尺寸（a*b） Mesh Size mm |
（8±1）* （6±1） |
（27±2）* （27±2） |
（74±5）* （74±5） |
（10±1）* （10±1） |
（10±1）* （6±1） |
| 4 |
宽度偏差 Width Deviation m |
+ 0.06 0 |
||||
| 5 |
长度偏差 Length Deviation m |
+ 1 0 |
||||
| 6 |
纵横向拉伸屈服强度 Tensile yield Strength (MD and XMD) kN/m |
≥6.2 | ≥5.8 | ≥5.0 | ≥6.0 | ≥18 |

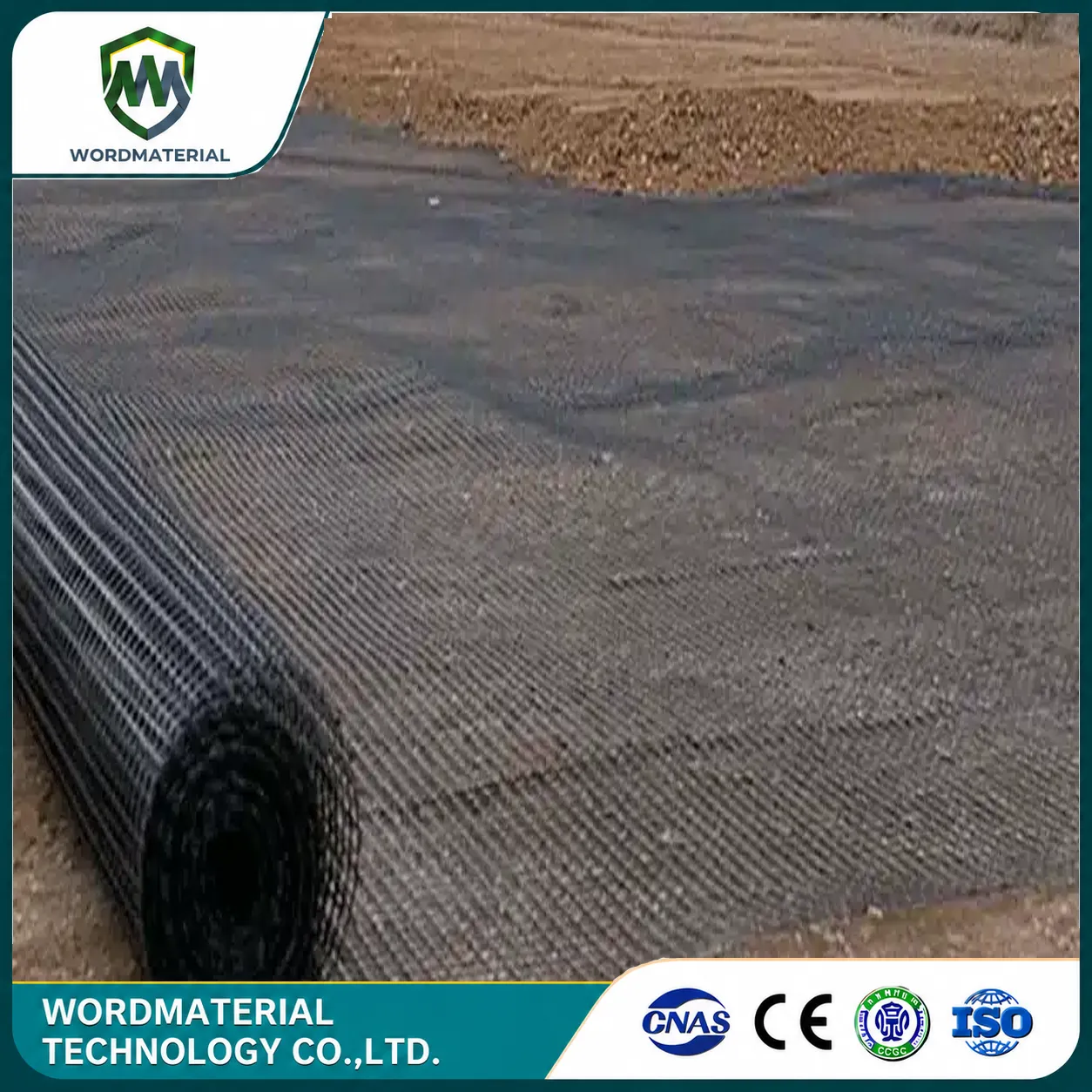

- Subgrade Reinforcement
- Laying geonets in highway and railway subgrades allows granular filler to interlock with the mesh, forming a stable plane, preventing filler subsidence, and distributing vertical loads over a wider area.

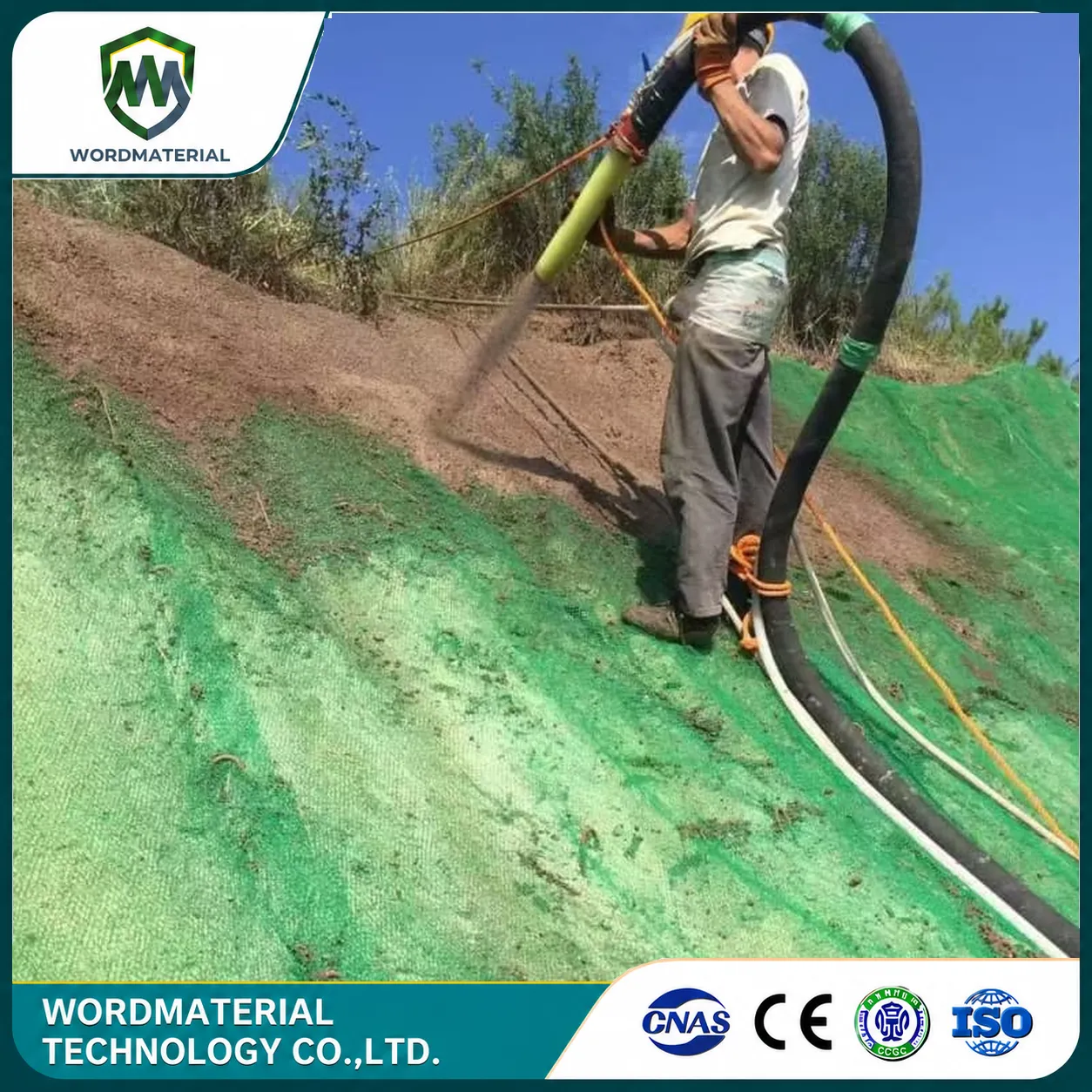

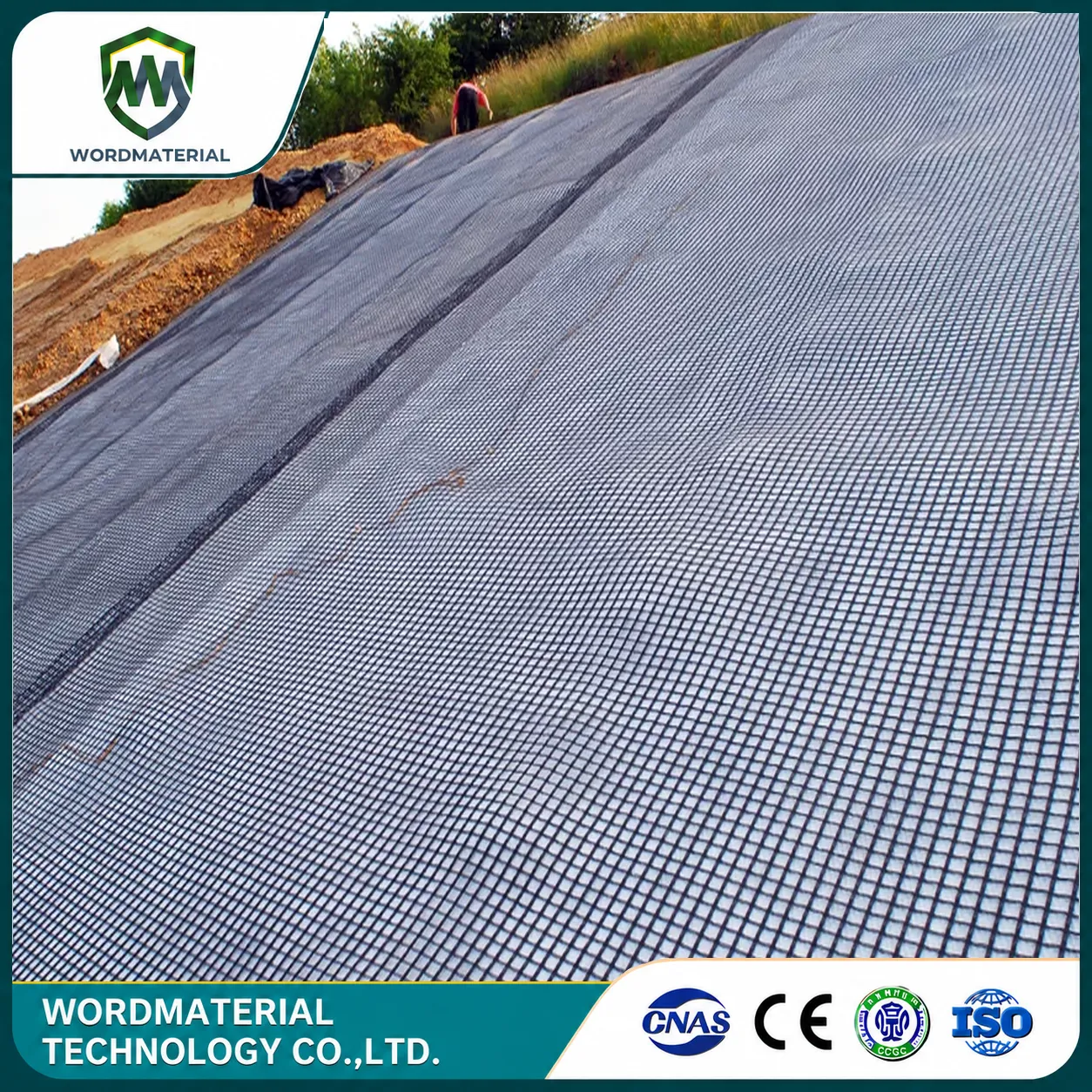

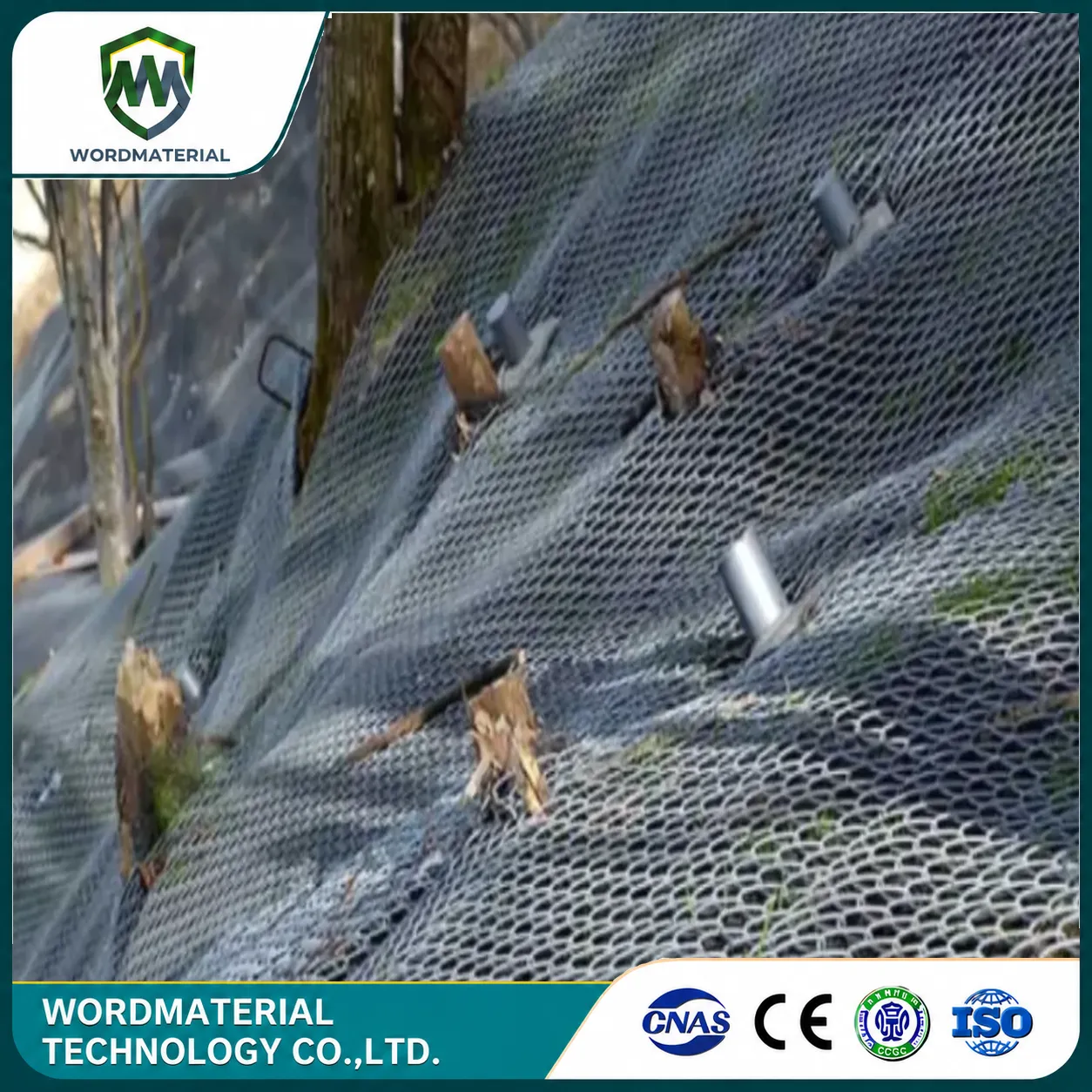

- Slope Protection
- Laying geonets on the surface of soil slopes, combined with vegetation or hydroseeding, prevents topsoil erosion.
- Gabion Engineering
- Geomesh cages, made into rectangular, square, or tubular shapes, are used for dam protection, river management, and coastal engineering.
- Dam Protection
- Used for river dams and coastal management to buffer wave impact energy and protect the dam structure.

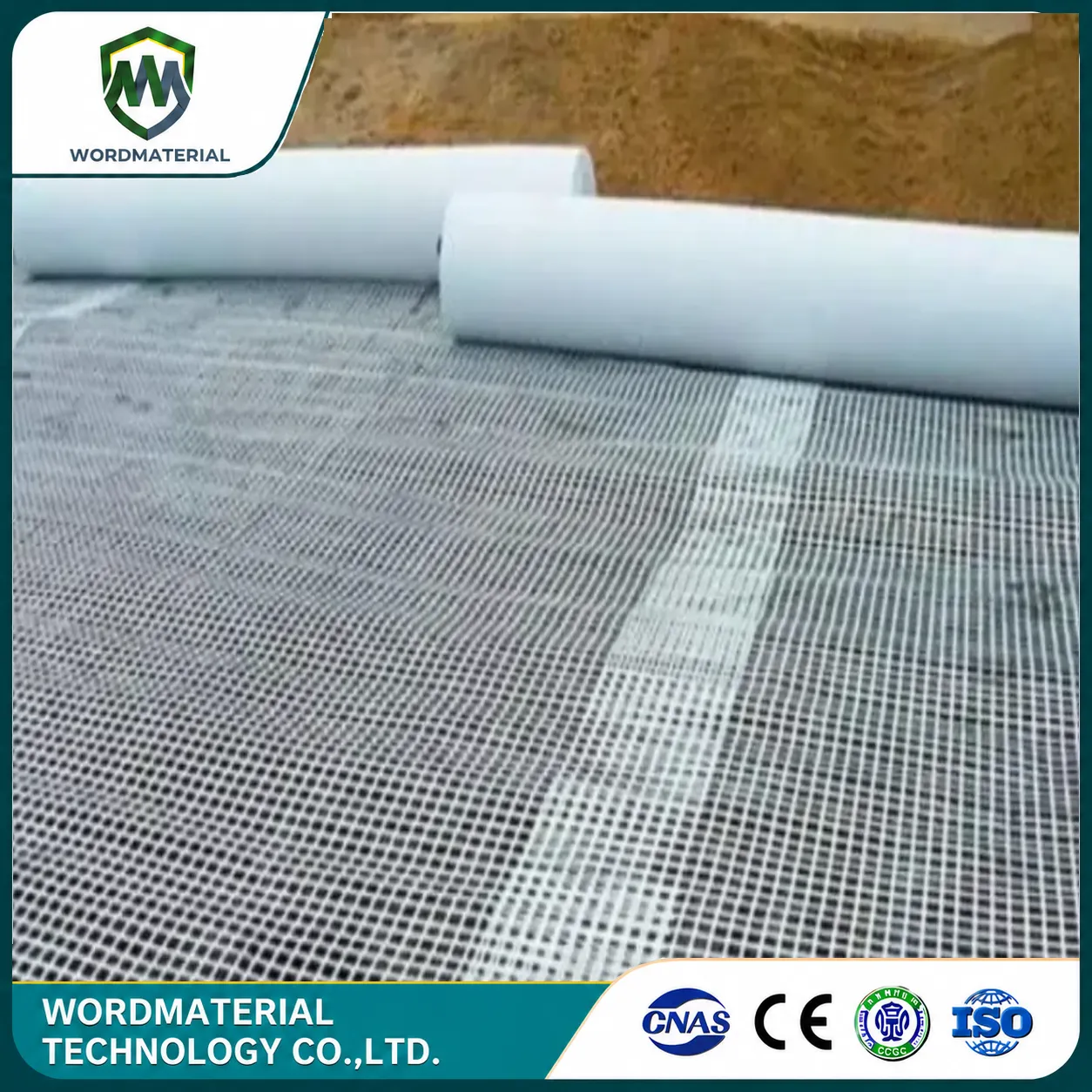

- Drainage Layer
- Laying drainage nets on the back of landfills, highway subgrades, and retaining walls to form horizontal drainage channels to drain groundwater or leachate.
- Tunnel Engineering
- Used as a drainage layer between the initial support and secondary lining of tunnels to drain seepage from the surrounding rock.
- Slope Greening
- Used in conjunction with 3D mesh mats to enhance the effect of grass planting on slopes.
- Temporary Protection
- Used for temporary protection of slopes and soil stockpiles to prevent wind and rain erosion.
