Geomembrane Product Features
- Raw Material: PET/PP
- Production Process: Spunbond, needle-punched, nonwoven
- Nominal Break Strength: 6-56 kN/m
- Width: 6-8m, can be customized.
- Standard: GB/T 17639-2023, ASTM, ISO...
- Delivery Time: Have stock.

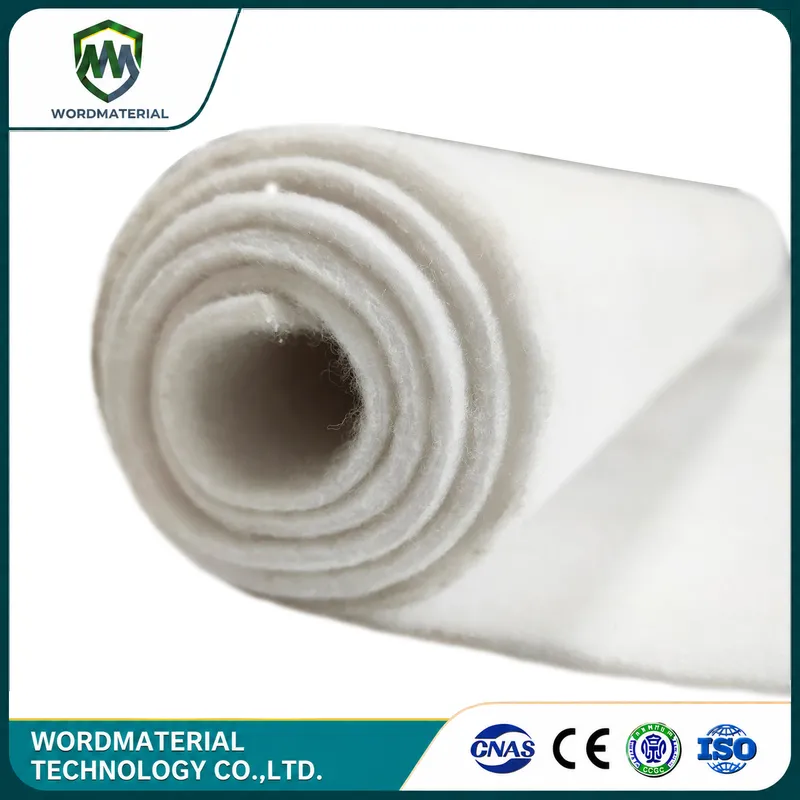

- Packaging: 50-100 m/roll, can be customized.
- Free Samples: Available.
- MOQ: Trial or bulk orders are acceptable.

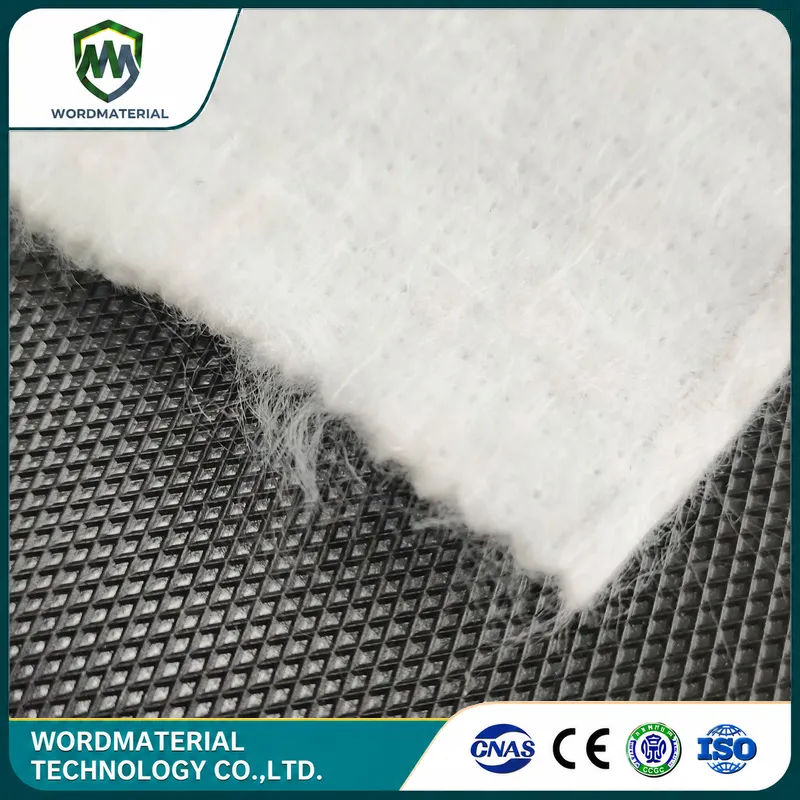

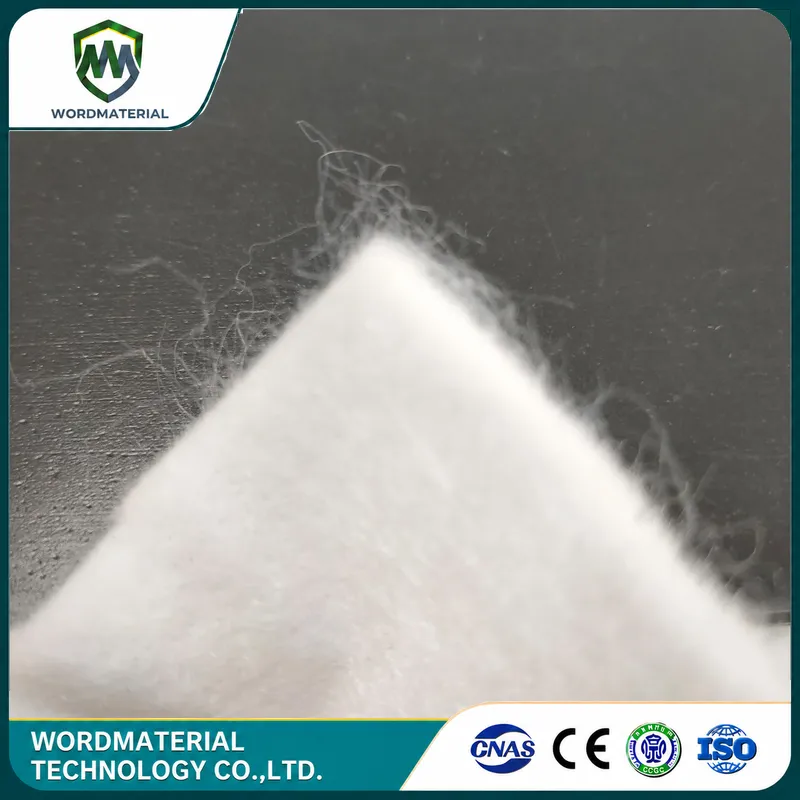

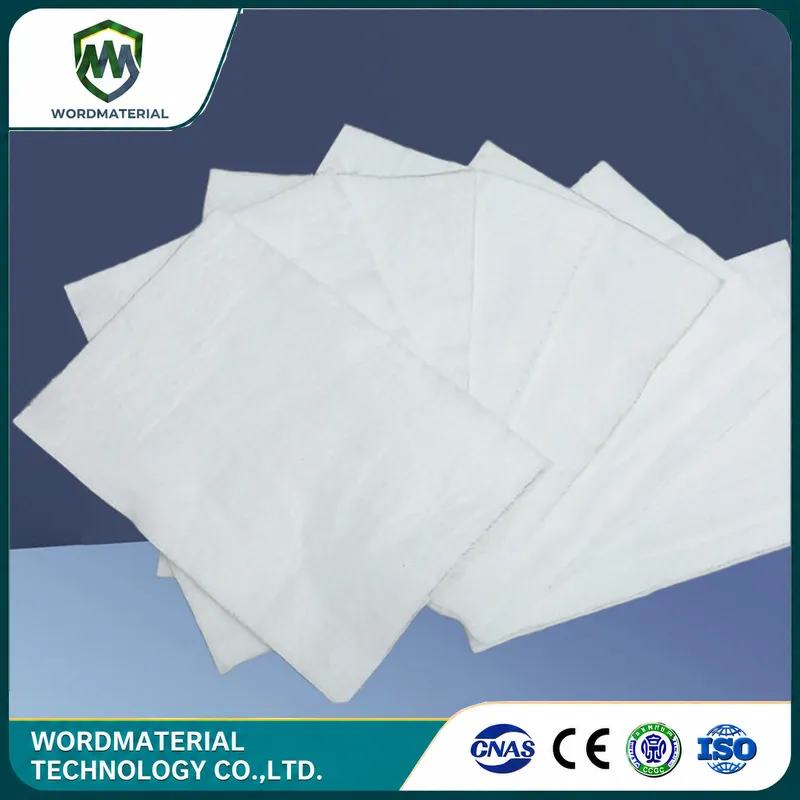

Filament Nonwoven Geotextile
Filament spunbond needle-punched nonwoven geotextile, a high-performance permeable filtration geosynthetic material. Compared to staple fiber products, filament geotextiles have higher strength, more uniform structure, and superior durability.
Filament spunbond needle-punched nonwoven geotextiles are high-strength nonwoven geotextiles, made from PET or PP through high-temperature melt extrusion and needle-punching bonding processes. Compared to short-fiber products, long-filament geotextiles have higher strength, more uniform structure, and superior durability. Our products can be manufactured according to GB/T, ASTM, ISO, and other standards, and all raw materials are pure new resin.
Production Process: High-strength filament nonwoven geotextile is produced through high-temperature melt extrusion, spinning into a web, web laying, and needle punching consolidation processes.
Quality Control: The entire production process is monitored by automation. Strict factory inspections are conducted in accordance with standards, to ensure that the dimensions, appearance, and key properties.
After-sales Service: We have over one million square meters of construction experience, and our team can provide on-site construction services. We also offer remote technical guidance to assist with welding and construction.
Advantages
- High strength and low creep
- Excellent burst and tear resistance
- Good resistance to dynamic perforation
- PET filaments have excellent UV resistance
- PP filament has excellent acid and alkali resistance.
|
Specification for Geotextile (PET Filament Spunbond Needle-punched Nonwoven)
GB/T 17639-2023
|
||||||||||
| No. |
标称断裂强度 Nominal Break Strength kN/m |
6 | 9 | 12 | 18 | 24 | 30 | 36 | 48 | 54 |
| 1 |
拉伸断裂强度(纵、横向) Tensile Break Strength (MD and XMD) kN/m |
≥6 | ≥9 | ≥12 | ≥18 | ≥24 | ≥30 | ≥36 | ≥48 | ≥54 |
| 2 |
纵横向最大负荷下伸长率 Elongation（max. load) (MD and XMD) % |
30～80 | ||||||||
| 3 |
顶破强力 Bursting Strength kN |
≥0.9 | ≥1.6 | ≥1.9 | ≥2.9 | ≥3.9 | ≥5.3 | ≥6.4 | ≥7.9 | ≥8.5 |
| 4 |
撕破强力 Tear Strength kN |
≥0.15 | ≥0.22 | ≥0.29 | ≥0.43 | ≥0.57 | ≥0.71 | ≥0.83 | ≥1.1 | ≥1.25 |
| 5 |
等效孔径 O₉₀（O₉₅） Equivalent Aperture O₉₀ (O₉₅) mm |
0.05～0.30 | ||||||||
| 6 |
垂直渗透系数 Vertical Permeability Coefficient cm/s |
K×(10⁻¹～10⁻³)，其中 K＝1.0～9.9 | ||||||||
| 7 |
幅宽偏差 Width Deviation Rate % |
≥-0.5 | ||||||||
| 8 |
单位面积质量偏差 Mass Deviation Rate per Unit Area % |
≥-5 | ||||||||
| 9 |
厚度偏差 Thickness Deviation Rate % |
≥-10 | ||||||||
| 10 |
厚度变异系数(CV) Coefficient of Variation of Thickness % |
≤10 | ||||||||
| 11 |
动态穿孔（破洞直径直径/mm） Dynamic Perforation (hole diameter) mm |
≤37 | ≤33 | ≤27 | ≤20 | ≤17 | ≤14 | ≤11 | ≤9 | ≤7 |
| 12 |
纵横向断裂强力（标准法） Break Strength (standard method) (MD and XMD) kN |
≥0.3 | ≥0.5 | ≥0.7 | ≥1.1 | ≥1.4 | ≥1.9 | ≥2.4 | ≥3 | ≥3.5 |
| 13 |
抗紫外线性能（氙弧灯法）*（纵横向强力保持率） UV Resistance (xenon arc lamp method) Strength- % retained(MD and XMD) % |
≥70 | ||||||||
| 14 |
抗紫外线性能（荧光紫外灯法）*（纵横向强力保持率） UV Resistance (fluorescent UV lamp method) Strength- % retained(MD and XMD) % |
≥80 | ||||||||
|
Specification for Geotextile (PP Filament Spunbond Needle-punched Nonwoven)
GB/T 17639-2023
|
||||||||||
| No. |
标称断裂强度 Nominal Break Strength kN/m |
6 | 9 | 12 | 18 | 24 | 30 | 42 | 56 | |
| 1 |
拉伸断裂强度(纵、横向) Tensile Break Strength (MD and XMD) kN/m |
≥6 | ≥9 | ≥12 | ≥18 | ≥24 | ≥30 | ≥42 | ≥56 | |
| 2 |
纵横向最大负荷下伸长率 Elongation（max. load) (MD and XMD) % |
40～100 | ||||||||
| 3 |
顶破强力 Bursting Strength kN |
≥1 | ≥1.6 | ≥2.1 | ≥3.2 | ≥4.2 | ≥5.5 | ≥6.5 | ≥8.7 | |
| 4 |
撕破强力 Tear Strength kN |
≥0.25 | ≥0.38 | ≥0.5 | ≥0.7 | ≥0.85 | ≥1 | ≥1.2 | ≥1.5 | |
| 5 |
等效孔径 O₉₀（O₉₅） Equivalent Aperture O₉₀ (O₉₅) mm |
0.05～0.30 | ||||||||
| 6 |
垂直渗透系数 Vertical Permeability Coefficient cm/s |
K×(10⁻¹～10⁻³), K＝1.0～9.9 | ||||||||
| 7 |
幅宽偏差 Width Deviation Rate % |
≥-0.5 | ||||||||
| 8 |
单位面积质量偏差 Mass Deviation Rate per Unit Area % |
≥-5 | ||||||||
| 9 |
厚度偏差 Thickness Deviation Rate % |
≥-10 | ||||||||
| 10 |
厚度变异系数(CV) Coefficient of Variation of Thickness % |
≤10 | ||||||||
| 11 |
动态穿孔（破洞直径直径/mm） Dynamic Perforation (hole diameter) mm |
≤34 | ≤31 | ≤27 | ≤20 | ≤17 | ≤14 | ≤11 | ≤7 | |
| 12 |
纵横向断裂强力（标准法） Break Strength (standard method) (MD and XMD) kN |
≥0.4 | ≥0.7 | ≥1 | ≥1.5 | ≥2 | ≥2.5 | ≥3 | ≥4 | |
| 13 |
抗酸碱性能 (纵横向强力保持率) Acid and Alkali Resistance Strength- % retained(MD and XMD) % |
≥90 | ||||||||
| 14 |
抗紫外线性能（氙弧灯法）*（纵横向强力保持率） UV Resistance (xenon arc lamp method) Strength- % retained(MD and XMD) % |
≥70 | ||||||||
| 15 |
抗紫外线性能（荧光紫外灯法）*（纵横向强力保持率） UV Resistance (fluorescent UV lamp method) Strength- % retained(MD and XMD) % |
≥80 | ||||||||

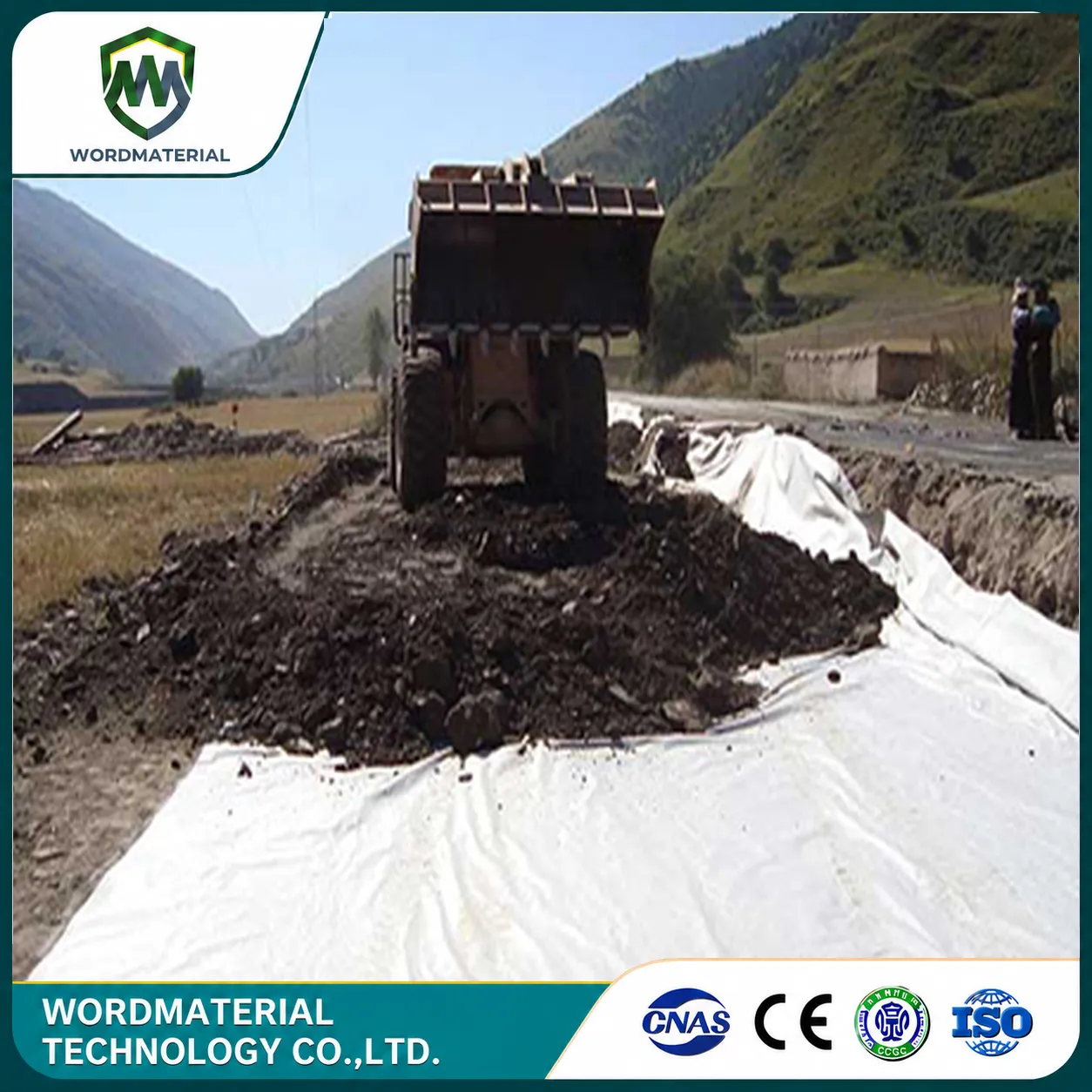

- High-grade highways and airport runways:
- Reinforced subbase layers in soft soil treatment, and anti-reflective cracking layers at the bottom of semi-rigid base courses.

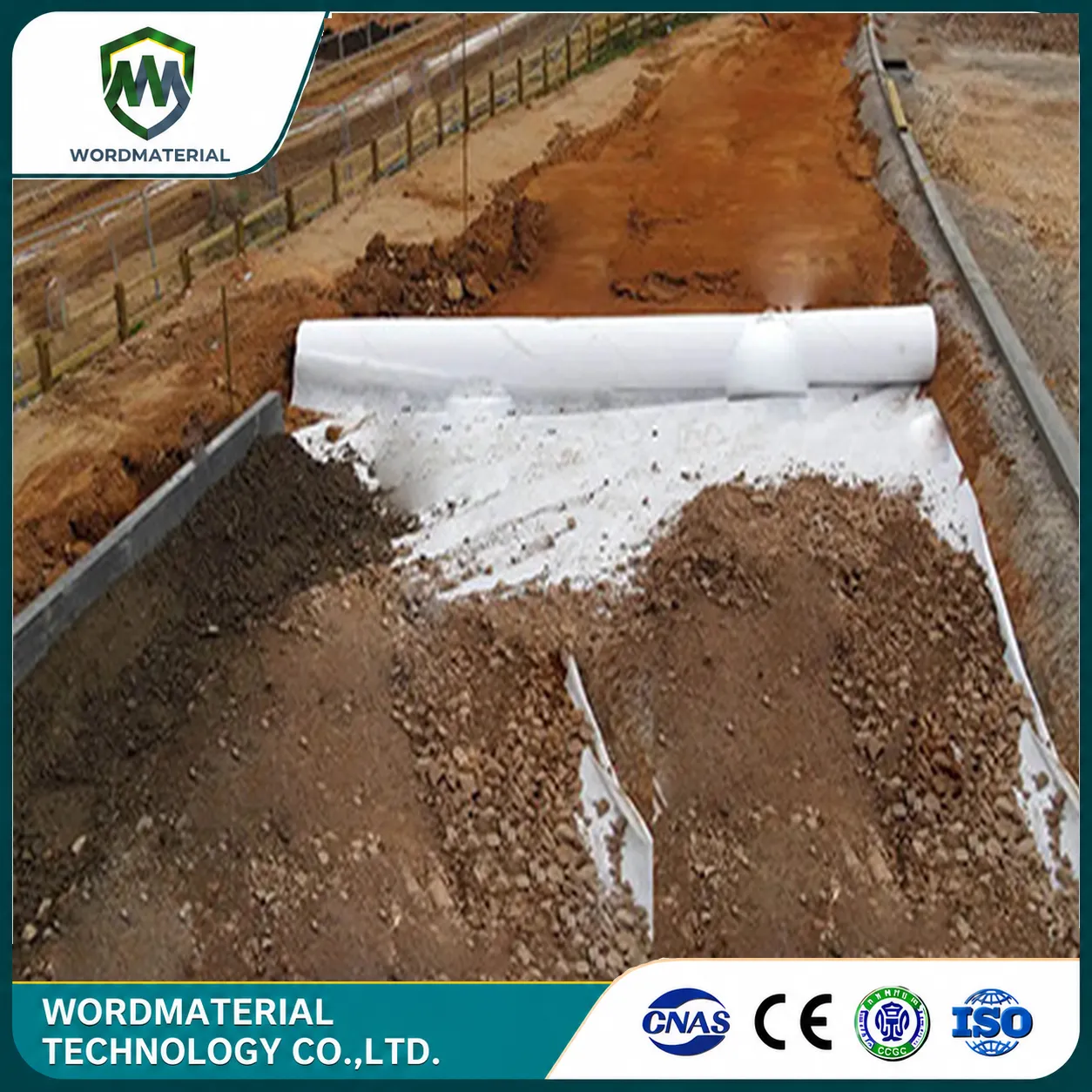

- Railway ballasted and ballastless track:
- Laid between the ballast layer and the subgrade, serving as isolation, reinforcement, and drainage, preventing ballast from embedding into the subgrade soil. Recommended nominal strength specifications are 30kN/m to 48kN/m.

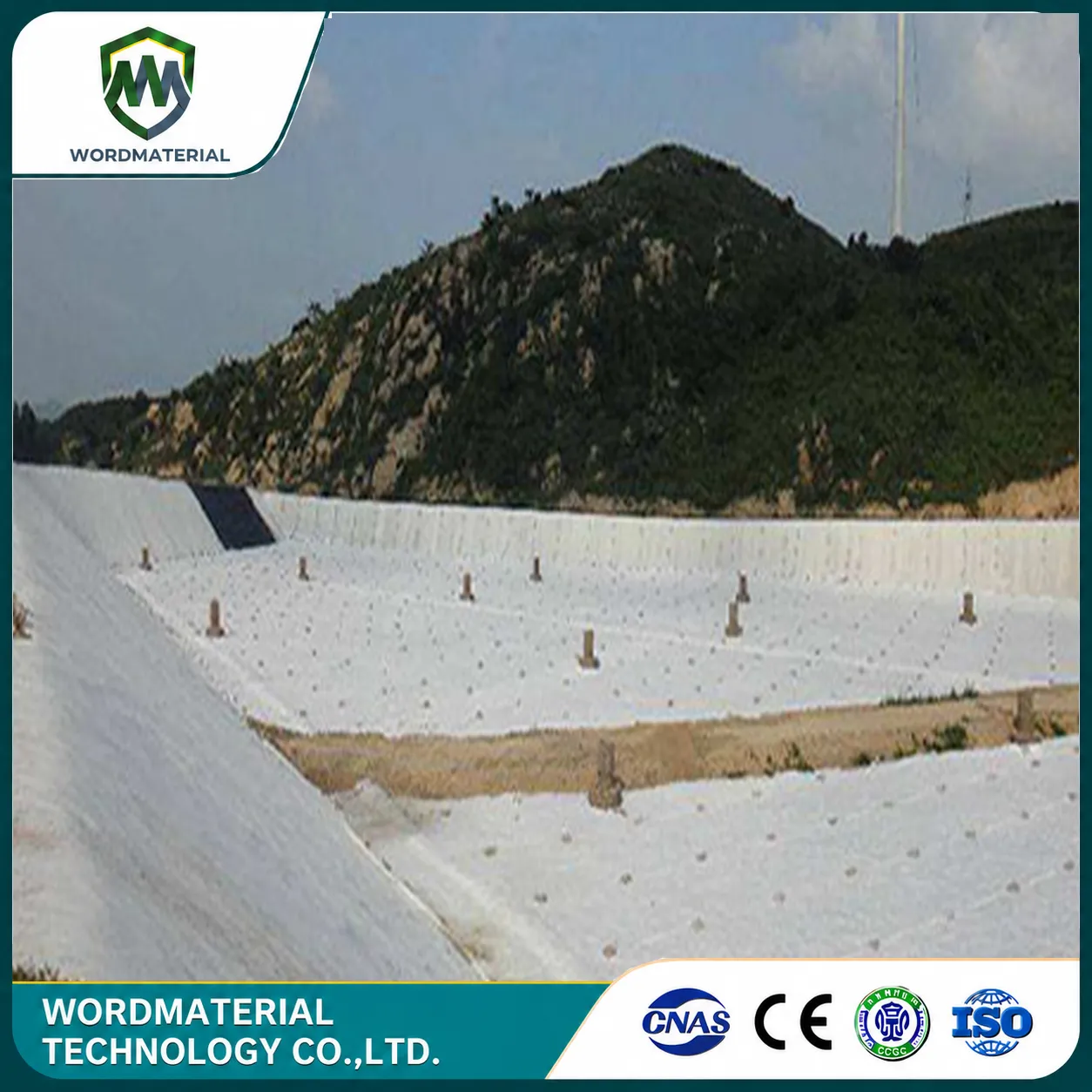

- Tailyards and heap leaching ponds:
- As the upper protective layer of HDPE geomembrane, it withstands the load and compaction of hundreds of millimeters of graded ore. The long-filament structure ensures no creep or cracking under long-term loads.

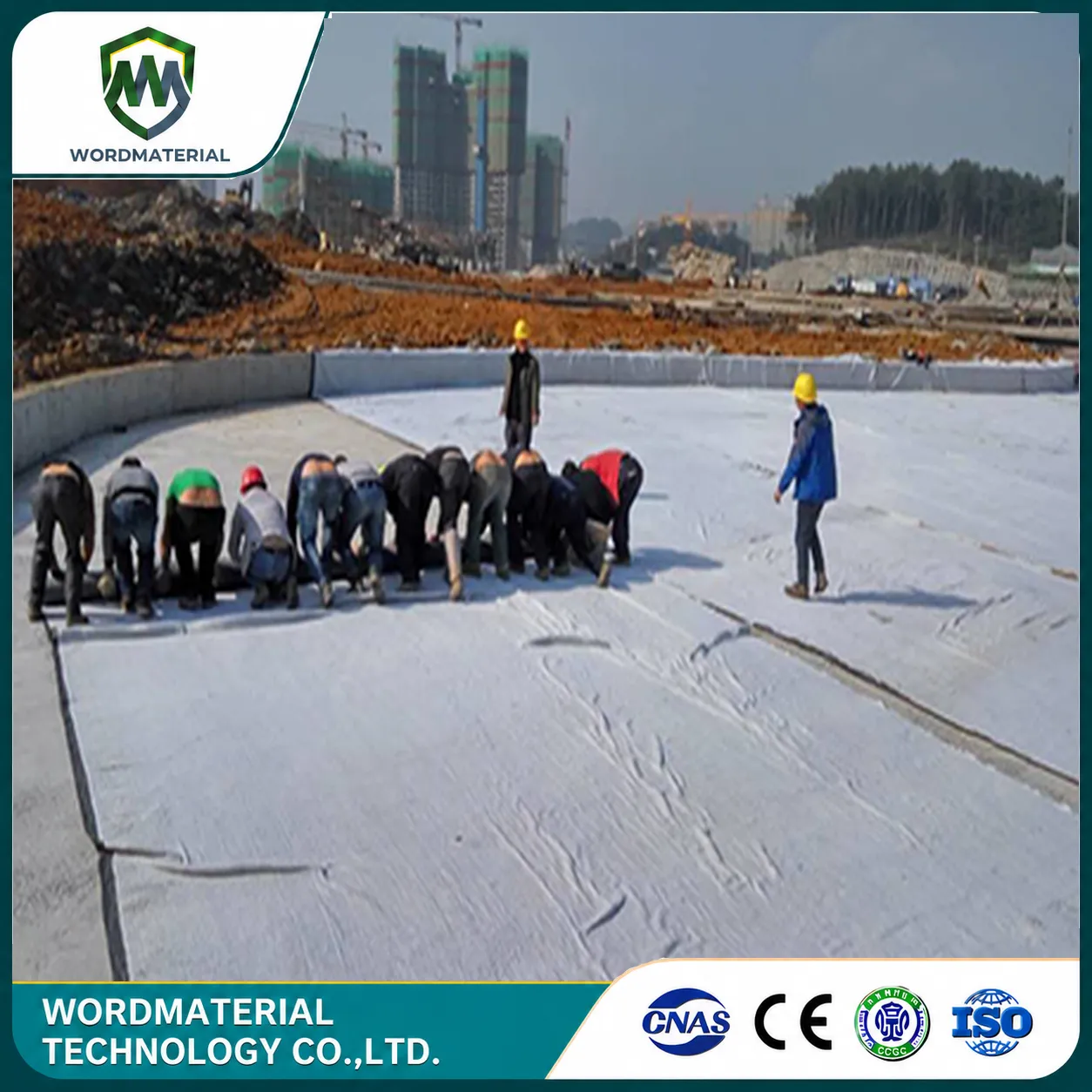

- Land reclamation and hydraulic reclamation projects:
- Laid on the surface of extremely soft soil foundations, forming a stable construction platform and accelerating drainage and consolidation. The high strength and biodegradability of long-filament geotextiles make them perform excellently in marine environments.
- Hazardous waste disposal site lining system:
- PP filament geotextile is widely used as an impermeable protective layer in hazardous waste landfills due to its excellent acid and alkali resistance.
